1 Spool Prince Auto Cycle Log Splitter Valve

   Returned Item:  Valve has cosmetic damage from shipping and is missing a handle. One handle included. Sold as is.

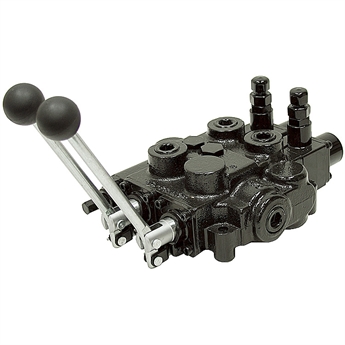

PRINCE AUTO-CYCLE CONTROL VALVE
PRINCE. Special Auto-Cycle valve allows operator to completely cycle (out and back) a double acting cylinder by only one handle movement.
Ideal for log splitter applications
Both levers are pulled out to detent position, cylinder extends and at end of forward stroke one lever automatically returns to neutral and cylinder reverses. When fully retracted second lever returns to neutral. (3 work ports are used, two are tied to together and then run to rod end of cylinder, third connects to base end of cylinder).
SPECIFICATIONS

• Open Center
• Spools Special For 1 DA Cylinder
• Double pressure relief detent
• Flow Max 25 GPM
• Pressure Max 3000 PSI
• Relief valve Adj.1500-3000 PSI factory set @ 2000 PSI
• Detent Pressure Range Adj.1000-2000 PSI
• In/Out Ports 3/4" NPT
• Work Ports 3/4" NPT
• Size 9-1/2" x 7-1/2" x 3-1/4"
• Shpg 29 lbs.
