Returned Item: The return cartridge needs to be replaced as it does not function. The coils do work, so only the cartridge will need to be replaced.

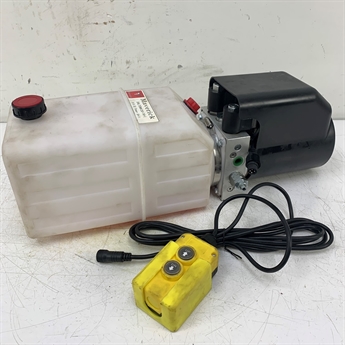

12 VOLT DC DOUBLE ACTING POWER UNIT
MAVERICK by DALTON, model 250-749-I. Hydraulic power unit for operating a double acting hydraulic cylinder. Ideal for many applications including dump trailers, flatbed dumps, forklift stackers, lift gates, pallet trucks, aerial lifts, auxiliary power and many other applications. Handheld remote with detachable 14 ft. cord.
SPECIFICATIONS
- Power 2 HP
- Voltage 12 DC
- Amperage 260 Amps
- Duty Intermittent
- Flow 1.2 GPM at 1500 PSI
- Pressure 3000 PSI max.
- Relief Valve Setting Adjustable set @ 3000 PSI
- Pendant Control Yes
- Valve Type Double Acting
- Valve Operation 12 Volt DC Solenoid
- Ports SAE 6
- Mounting Horizontal
- Reservoir Size 2 Gallon
- Reservoir Size Useable 1.5 Gallon
- Reservoir Material Plastic
- Size 22" x 7" x 8"
- Shpg. 34 lbs.
