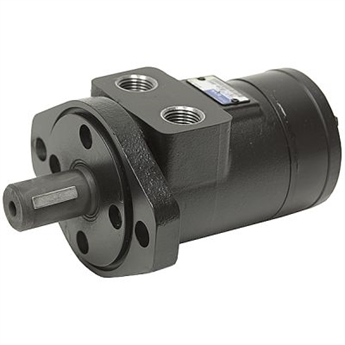

17.9 cu in Char-Lynn 101-1031 Hydraulic Motor

   Returned Item:  This motor has been used briefly.  I has been tested.

17.9 cu in CHAR-LYNN 101-1031 HYD MOTOR
CHAR-LYNN H series motors. Gerotor power element. Interchangeable with the following motor lines: Dynamic BMPH, Danfoss DH, White RS, Parker/Ross MG/TB.

SPECIFICATIONS

• Disp. 17.9 cu. in. / rev.
• Motor Type Gerotor
• Pressure:
    1350 PSI cont.
    1800 PSI int.
• Torque:
    3110 in-lbs. cont.
    4121 in-lbs. int.
• Speed:
    192 RPM cont.
    256 RPM int.
• Flow:
    15 GPM cont.
    20 GPM int.
• Rotation Reversible
• Mount 2 bolt SAE A
• Shaft 1" dia. x 1-3/4" keyed
• Ports 1/2" NPT
• Case Drain N/A
• Size 6-9/16" x 3-5/16" x 3-5/16"
• Shpg. 16 lbs.
