19 HP Kohler Courage Vertical Engine

   This engine has been installed.  It runs fine with the choke on, but when the choke is off the engine does not run.

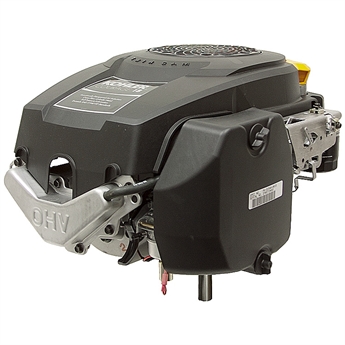

19 HP KOHLER VERTICAL SHAFT ENGINE
New KOHLER Courage series overhead valve vertical shaft gas engine. Aluminum block with cast iron cylinder liners. Features include 12 volt DC electric start, inverted crankcase to prevent leaks, pressurized lubrication with filter, electronic ignition,  float type carburetor, and 12 volt DC 12 amp alternator. Solenoid carburetor shutdown.No fuel tank or muffler.

SPECIFICATIONS

• MODEL CV591-3220
• HP 19
• Torque 33 ft.lb.
• Displ. 597 cc
• Speed 3600 RPM
• Start Electric
• Crankshaft 1" x 3-5/32" w/1/4" keyway, tapped 7/16-20
• Mount 10" Bolt Circle
• Size 19.4" x 16.4" x 12.9"
• Shpg 120 lbs.
