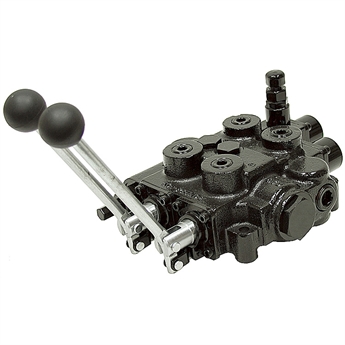

2 Spool 25 GPM Prince Log Splitter/Lifter Valve

   Returned Item:  Sent to manufacturer and tested. This valve has been installed and has cosmetic scratches and marks.

PRINCE Model RD522CCEA5A4B1 control valve. Ideal for use in log splitters equipped with a log lift. First spool has a pressure release detent on the spool-out position and springs to center on the spool-in position. Second spool is 3-position spring to center. Detent pressure preset to 1200 PSI, adjustment range 1000-2000 PSI.

SPECIFICATIONS

• Open center

• 25 GPM max.

• 3000 PSI max.

• Adjustable relief valve preset to 2000 PSI, adjustable range 1500-3000 PSI

• IN/OUT ports 3/4˝ NPT

• Work ports 1/2˝ NPT

 • Size 9-1/2˝ x 7-1/2˝ x 3-1/4˝

• Shpg. 29 lbs
