Description

   Returned Item:  This cylinder was installed but fluid was not run through it.

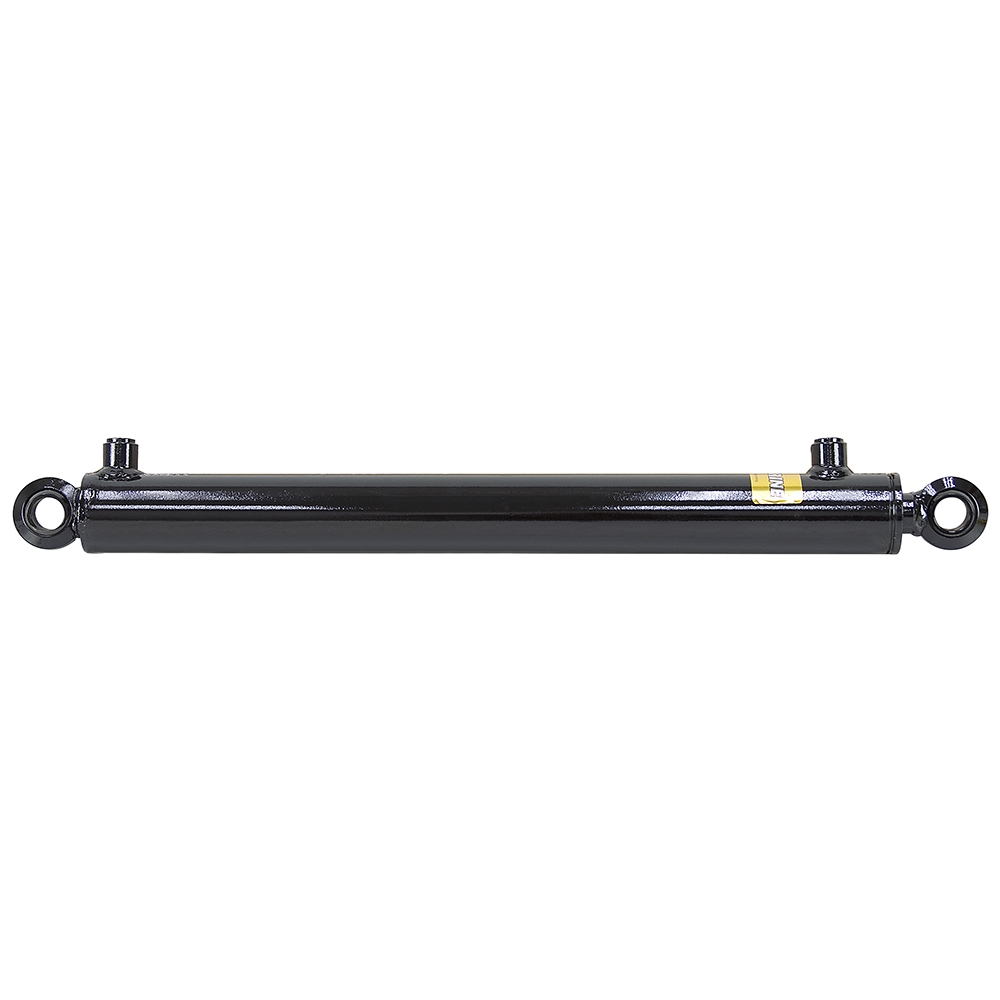

2" x 16" x 1.25" DA HYD CYL
WOLVERINE by PRINCE double acting cylinder with swivel eyes. Heavy duty welded construction with threaded-in gland design. Top port design with SAE O-ring ports for reliable and leak free connection. Spherical ball end swivel eye amount on both ends to allow for angular misallignment.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2" x 16"
  • Barrel Thickness 0.25"
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI max.
  • Rod Dia. 1.25"
  • Ports SAE 8
  • Retracted Length 23.5"
  • Shpg. 22 lbs.
END MOUNTINGS
  • Rod End Swivel-Ball
  • Ball Width 0.97"
  • Ball O.D. 2.25"
  • Pin Hole 1"
  • Base End Swivel-Ball
  • Ball Width 0.97"
  • Ball O.D. 2.25"
  • Pin Hole 1"
