3.25x8x1.25 Double Acting Rephasing Hydraulic Cylinder Cross Mfg 32508DR

   Returned Item:  This cylinder was repaired by manufacturer after installation. Sold as is.

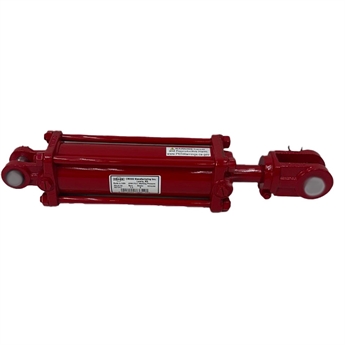

3.25" x 8" x 1.25" REPHASING HYDRAULIC CYLINDER
Cross Mfg. 32508DR, tie-rod, rephasing, double acting hydraulic cylinder. For series applications where multiple cylinders extend and retract equally. Two or more cylinders are plumbed in series, with bore and rod diameters sized so all rods extend or retract in unison. The rephase bypass allows oil to bypass piston on full cylinder extension to fill the next cylinder during initial synchronization or to compensate for internal leakage. May be used as master or slave units in a series circuit.

SPECIFICATIONS
Double Acting Model Number 32508DR Bore x Stroke 3.25" x 8" Gland Retainer 4-Hole Pressure 2500 PSI max. Rod Dia. 1.25"	Ports SAE 8 Retracted Length 20.25" Shpg. 28 lbs.

END MOUNTINGS
Rod End Clevis Outside Width 2.75" Inside Width 1.25" Throat Depth 2.125" Pin Hole 1"	Base End Clevis Outside Width 2.75" Inside Width 1.25" Throat Depth 1.625" Pin Hole 1"
