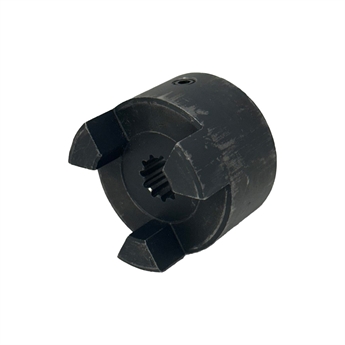

3/4" 11 Tooth Splined L-100 Jaw Coupling Half

   Returned Item:  This coupling has marks of installation. Sold as is.

3-PIECE FLEXIBLE COUPLING HALF
3-piece flexible coupling half. Ideal for connecting engines or electric motors to pumps, drive shafts, etc. A complete 3-piece coupling consists of two coupling halves from compatible series and one corresponding flexible insert. The following series jaw coupling halves can be interchanged; L-90 with L-095 and L-099 with L-100. Coupled length is the overall length of an assembled 3-piece coupling of the same series. Interchangeable with Lovejoy and Martin brands.

SPECIFICATIONS

• Series L-100
• Torque 700 in.-lbs. max.
• Speed 3600 RPM
• Power 21.6 HP max. @ 3600 RPM
• Bore 3/4" 11 tooth splined w/2 setscrews
• O.D. 2-17/32"
• Coupler Half Length 2.03"
• Coupled Length 3-1/2"
• Shpg. 2 lbs.
