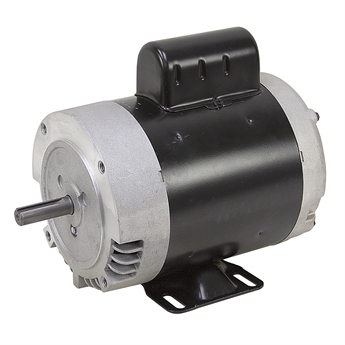

3/4 HP 1725 RPM 115/208-230 Volt AC CENTURY 7-196325-21 Motor

   Returned Item:  This motor may have been wired. Sold as is.

3/4 HP 1725 RPM MOTOR
CENTURY electric motor model# 7-196325-21. Manual thermal overload protection

SPECIFICATIONS

• Power 3/4 HP
• Voltage 115/208-230 AC
• Phase 1
• Frequency 60/50 Hz
• Amperage 10.6/5.2-5.3 Amps
• Speed 1725/1425 RPM
• Rotation Reversible
• Service Factor 1.25
• Bearings Ball
• Thermal Overload Protection Manual
• Enclosure ODP
• Duty Continuous
• Frame K56C
• Base Mount Four slots on 4" to 5-3/4" x 3" centers
• Face Mount Four 3/8"-16 threaded holes on 5-7/8" B.C. w/ 4-1/2" pilot
• Shaft 5/8" dia. x 1-7/8" overall length w/ 3/16" wide x 1-1/2" long keyway
• Size 11-1/2" x 6-1/2" x 9"
• Shpg. 31 lbs.
