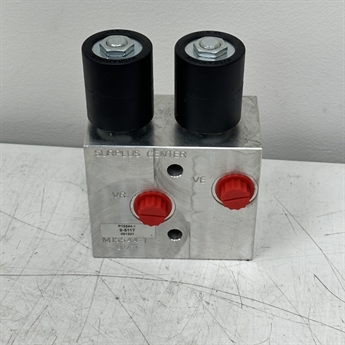

SAE 8 15 GPM Double Selector Valve 12 Volt DC Fluidtech P15544-1

   Returned Item:  This selector valve has been installed and used briefly.

SOLENOID OPERATED DOUBLE SELECTOR VALVE
Dual 12 volt DC solenoid operated double selector/multiplier valve. Ideal for use with tractor remotes and directional control valves for controlling two different cylinders or motors. Applying voltage to either coil will allow a directional control valve to operate the selected circuit actuator. When used with "variable flow" or "closed center" systems valve can be used as a selector, or power both solenoids and direct fluid to both circuits at the same time.

SPECIFICATIONS

• Flow 15 GPM
• Pressure 3000 PSI
• Voltage 12 volt DC
• Amperage 1.67 amps
• Coil Duty Rating Continuous from 85% to 115% of nominal voltage
• Ports SAE 8
• Terminal Connection 1/4" spade
• Size 4-1/2" x 2-1/2" x 6-1/2"
• Shpg. 7 lbs.
