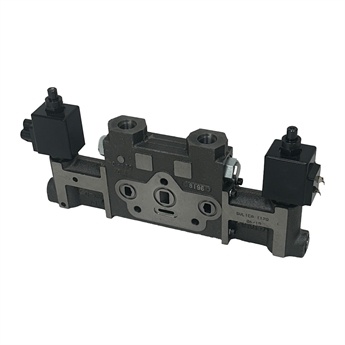

SVLCA-T12Q Prince SV 12 Volt DC Solenoid Operated Double Acting Work Section w/PO Work Port Checks

   Returned Item:  This work section is missing the O-ring kit and has a damaged solenoid. Sold as is.

WORK SECTION 12 VOLT DC SOLENOID SV SECTIONAL CONTROL VALVE
PRINCE 12 volt DC solenoid operated work section for SV sectional control valves. Top  ports. Pilot operated check valves (lock valve) installed into both work ports. Open center and open center power beyond hydraulic systems requires a pressure build up outlet section to supply 150-200 PSI pressure to solenoid valves to actuate spool. Closed center systems do not require pressure build-up outlet section as long as 200 PSI is maintained in the closed center position to actuate spool properly. Can be stacked with manual SV sections.

SPECIFICATIONS

• Double Acting
• Model Number SVL1CA-T12Q
• Spool Actuator Voltage  12 Volt DC
• Spool Type 4-Way 3-Position
• Spool Action Spring center
• Flow 12 GPM nominal
• Pressure 3000 PSI max.
• Ports SAE 8
• Size 13-3/4" x 1-1/2" x 5-15/16"
• Shpg. 12 lbs.
