Description

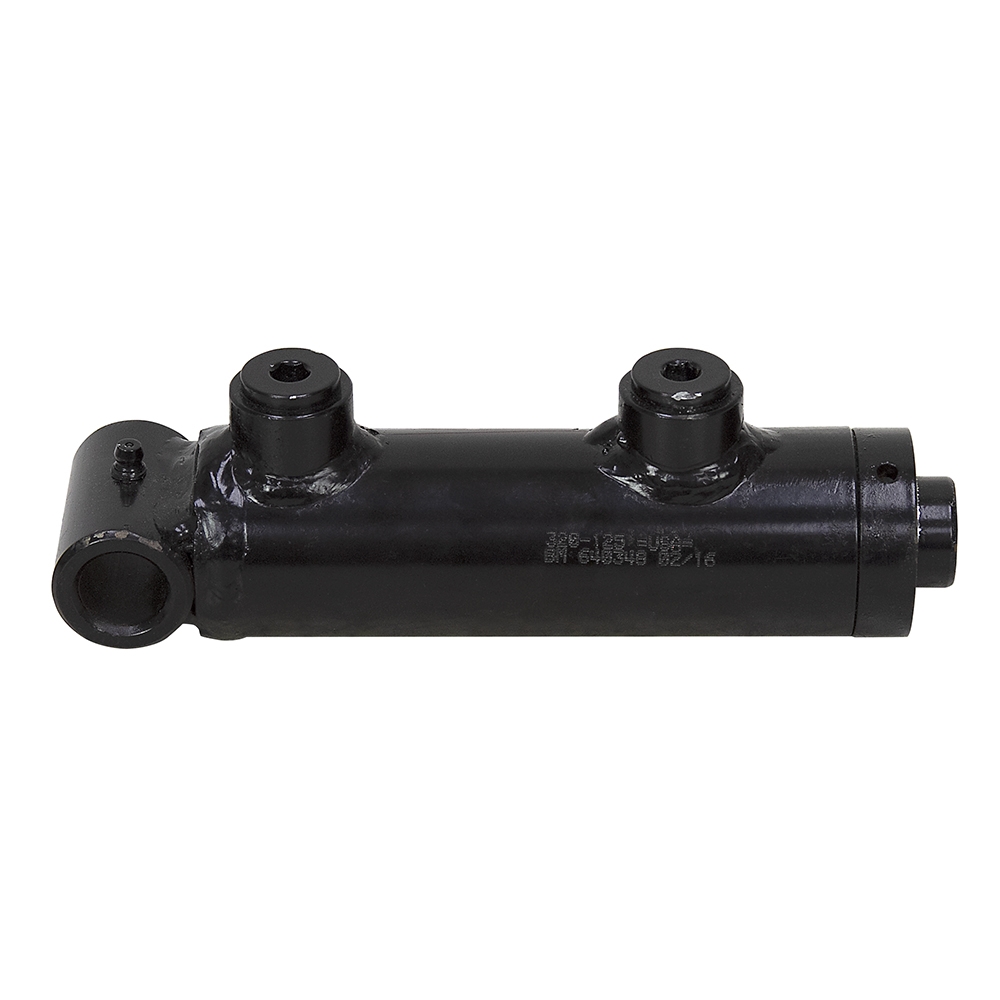

1.5" x 2.5" x 1" DA HYDRAULIC CYLINDER
New. Double acting hydraulic cylinder. Bailey model# 320-125

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 1.5" x 2.5"
  • Barrel Thickness 0.1875"
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI max.
  • Rod Dia. 1"
  • Ports SAE 8
  • Retracted Length 7.25"
  • Gland Face to Rod Pin Center 0.257"
  • Shpg. 7 lbs.
END MOUNTINGS
  • Rod End Flat
  • Diameter 1"
  • Base End Cross-Tube
  • O.D. 1.25"
  • Width 0.75"
  • Pin Hole 3/4"
Ask A Question

Showing Questions of 1

Is the end of the rod threaded? If so, what is the thread?

A: No, the rod end is smooth and flat. It is not threaded.
