2.25x16x1.25 DA Hydraulic Cylinder Bailey 320-328

Item Number: 9-12350

Price: $109.95
TOP
Back to top

2.25x16x1.25 DA Hydraulic Cylinder Bailey 320-328

2.25x16x1.25 DA Hydraulic Cylinder Bailey 320-328

item number: 9-12350 PRICE: $109.95 Out of Stock - No Longer Available
Calculate Shipping for Item 9-12350
2.25x16x1.25 DA Hydraulic Cylinder Bailey 320-328
Item Number: 9-12350
Price: $109.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 62 of our current catalog
Description

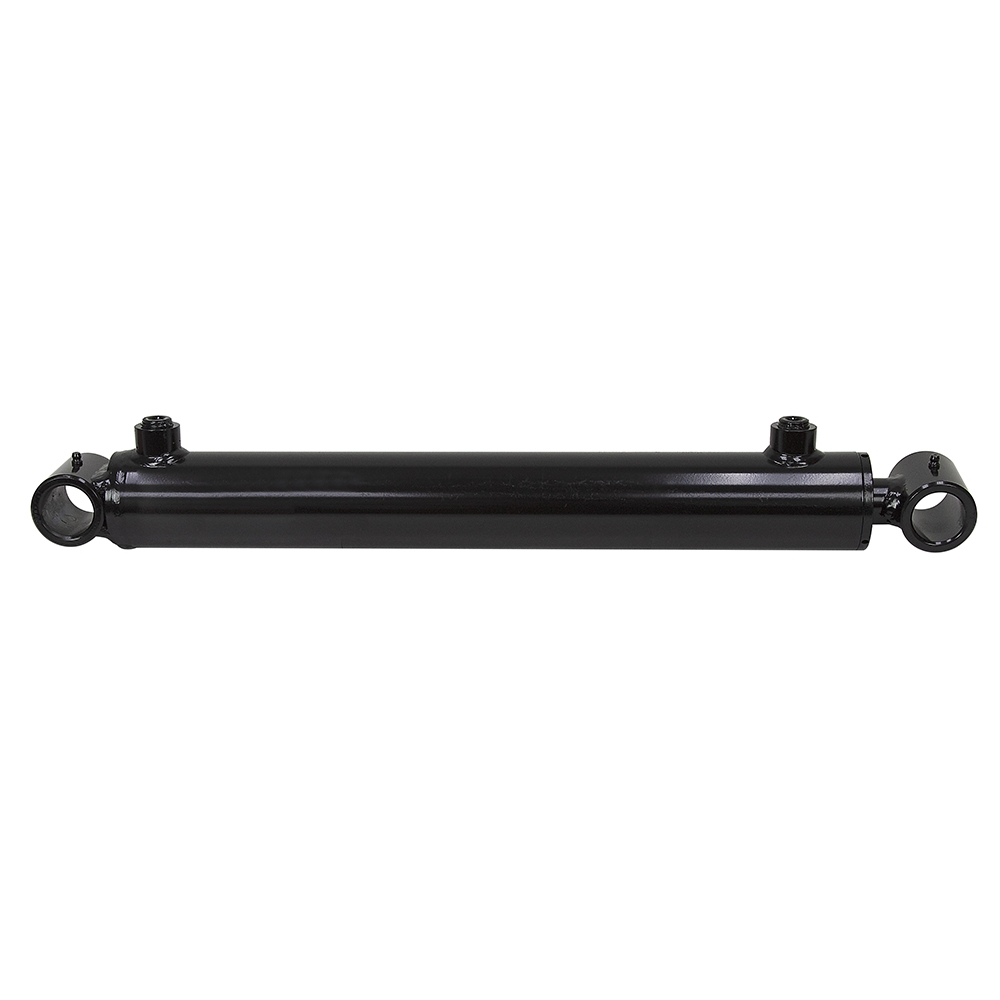

2.25" x 16" x 1.25" DA HYDRAULIC CYLINDER
New. Double acting hydraulic cylinder. Bailey model# 320-328

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2.25" x 16"
  • Barrel Thickness 0.1875"
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI max.
  • Rod Dia. 1.25"
  • Ports 1/2" NPT
  • Retracted Length 23"
  • Gland Face to Rod Pin Center 1.25"
  • Shpg. 24 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 2"
  • Width 2.5"
  • Pin Hole 1-3/8"
  • Base End Cross-Tube
  • O.D. 2"
  • Width 2.625"
  • Pin Hole 1-3/8"
