40:1 Right Angle 0.99 HP 56C Hollow Output Worm Gear Reducer Baldor HF-924-40-B5-H100

Item Number: 13-1634

Price: $119.95
TOP
Back to top

40:1 Right Angle 0.99 HP 56C Hollow Output Worm Gear Reducer Baldor HF-924-40-B5-H100

40:1 Right Angle 0.99 HP 56C Hollow Output Worm Gear Reducer Baldor HF-924-40-B5-H100

item number: 13-1634 PRICE: $119.95 5 In Stock Surplus Item



Available for in store pickup in our Lincoln, NE location
calculate shipping
Calculate Shipping for Item 13-1634
40:1 Right Angle 0.99 HP 56C Hollow Output Worm Gear Reducer Baldor HF-924-40-B5-H100
Item Number: 13-1634
Price: $119.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description

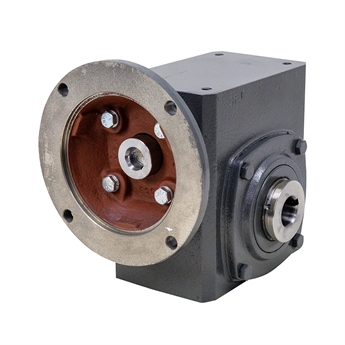

40:1 RIGHT ANGLE WORM GEAR REDUCER
Unused old inventory, Baldor HF-924-40-B5-H100 right-angle gear reducer. Cast iron construction provides a rigid housing which reduces noise and vibration. Oversized, heavy duty bearings allow greater thrust capacity and extended service life. Sealed housing. No breather vent required, preventing contamination from outside environment. Supplied filled with oil.

SPECIFICATIONS
  • Brand Baldor
  • Model Number HF-924-40-B5-H100
  • Series 900
  • Ratio 40:1
  • Input Speed 1750 RPM max.
  • Output Speed 44 RPM max.
  • Output Torque
       840 in-lb @ 2400 RPM
       1030 in-lb @ 1750 RPM
       1263 in-lb @ 1150 RPM
       1381 in-lb @ 850 RPM
       1697 in-lb @ 100 RPM
  • Overhung Load 1000 lbs
  • Output Shaft Thrust Load 800 lbs
  • Output Shaft Centerline Height 2.5"
  • Motor Mount 56C w/ four 0.415" dia. holes on 5.875" dia. B.C.
  • Input Bore 5/8" keyed bore
  • Output Type Hollow Bore
  • Output Hollow Bore 1" dia. x 6.31" keyed thru-length
  • Mount Two sets of four 3/8"-16 tapped holes on 5" x 2-7/8" centers
  • Size 8.47" x 8.19" x 6.31"
  • Shpg 48 lbs.
