60 Gallon Vertical 175 PSI Air Tank

60 GALLON VERTICAL AIR TANK

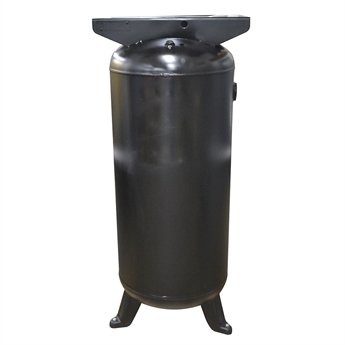

Air tank is removed from a complete compressor returned to original retailer for motor or compressor warranty. Vertical steel tank with black exterior paint. Mount on top with holes for compressor and holes for motor. Certified by Twin Lakes Tanks.

SPECIFICATIONS

• Capacity 60 gallons
• Pressure 175 PSI max.
• Gauge Port 1/4" NPT

• Compressor Port 1/2" NPT

• Outlet Port 2" NPS w/ ST070190AV O-ring

• Drain Port 1/4" NPT

• Tank size 20" dia. x 45"
• Mounting plate 23.5" x 9"
• Compressor Mounting Holes Two sets
  4.875" x 3" & 7.5" x 6.5" centers
• Motor Mounting Holes Two sets
  6.625" x 5.75" & 4.875" x 3" centers

• Overall Size 22.25" x 21.75" x 53"
• Shpg. 190 lbs.
