Description

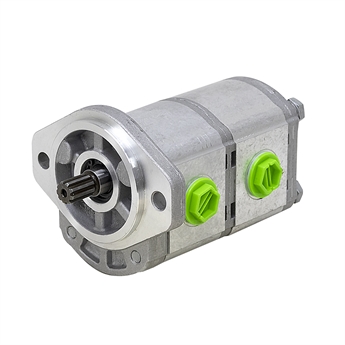

0.4/0.4 CU IN CASAPPA PLP20 HYDRAULIC DOUBLE GEAR PUMP
New, Casappa double gear pump. Common inlet port. Aluminum body. Numbers stamped on pump are PLP20.6,3-03S1-LOD/OC/20.6,3-L/OC-.

SPECIFICATIONS
  • Manufacturer Casappa
  • Model Number PLP20.6,3-03S1-LOD/OC/20.6,3-L/OC-S7 D/FS-EL AV
  • Part Number 666000DZ 06282671
  • Disp.
      0.4 cu in /rev Front
      0.4 cu in /rev  Rear
  • Pump Type Gear
  • Rotation CW
  • Pressure:
      Front 3625 PSI cont.
      Rear 3625 PSi cont.
  • Speed:
      600 min. to 4000 max. RPM
  • Flow:
      Front 6.3 GPM cont.
      Rear 6.3 GPM cont.
  • Mount SAE A 2 bolt
  • Shaft SAE A 9 tooth spline
  • Inlet Port SAE 12
  • Outlet Port SAE 10
  • Size 7.6" x 5.13" x 4.53"
  • Shpg. 10.5 lbs.
