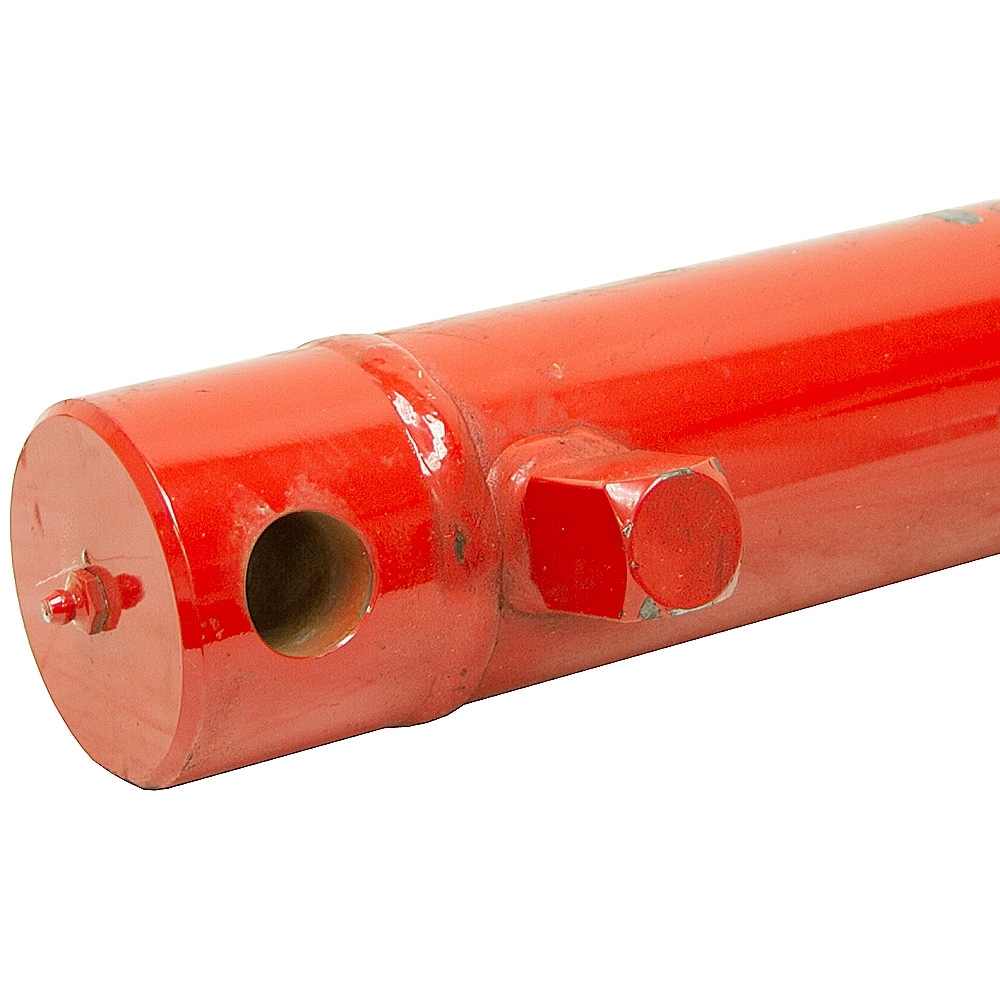

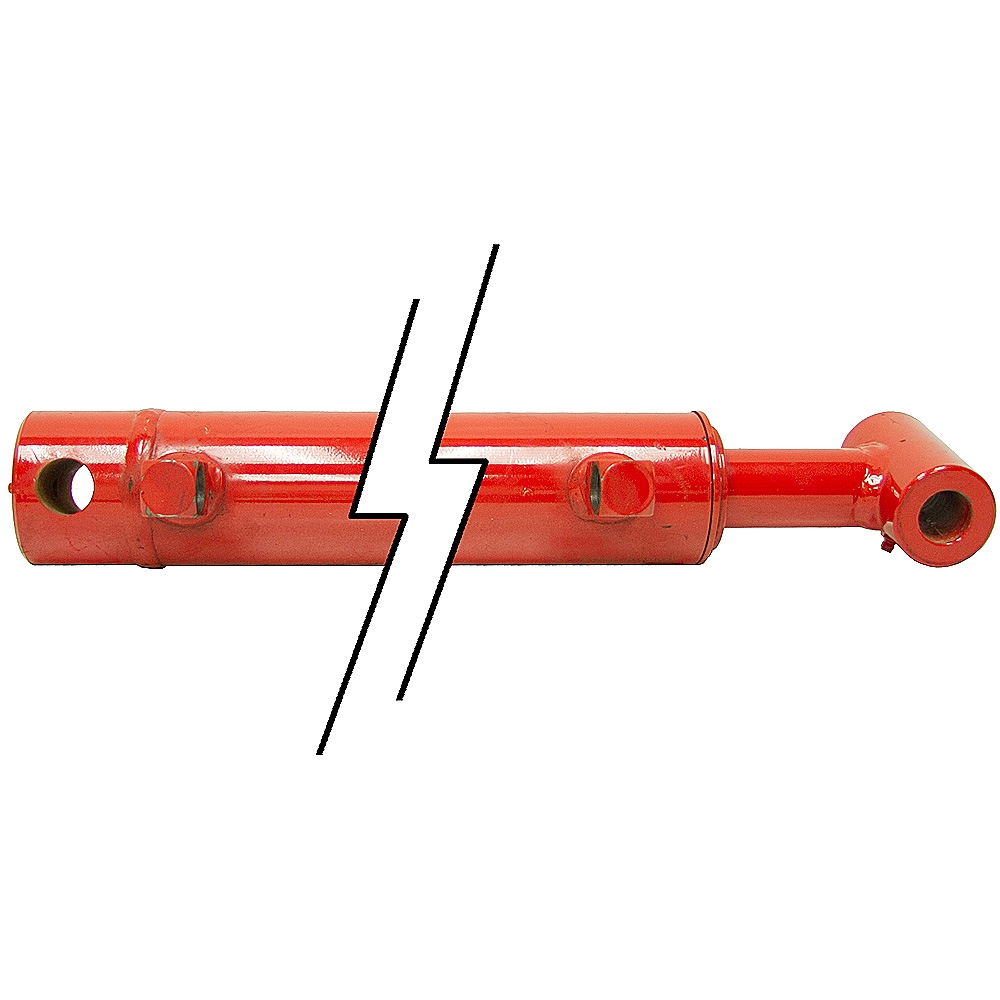

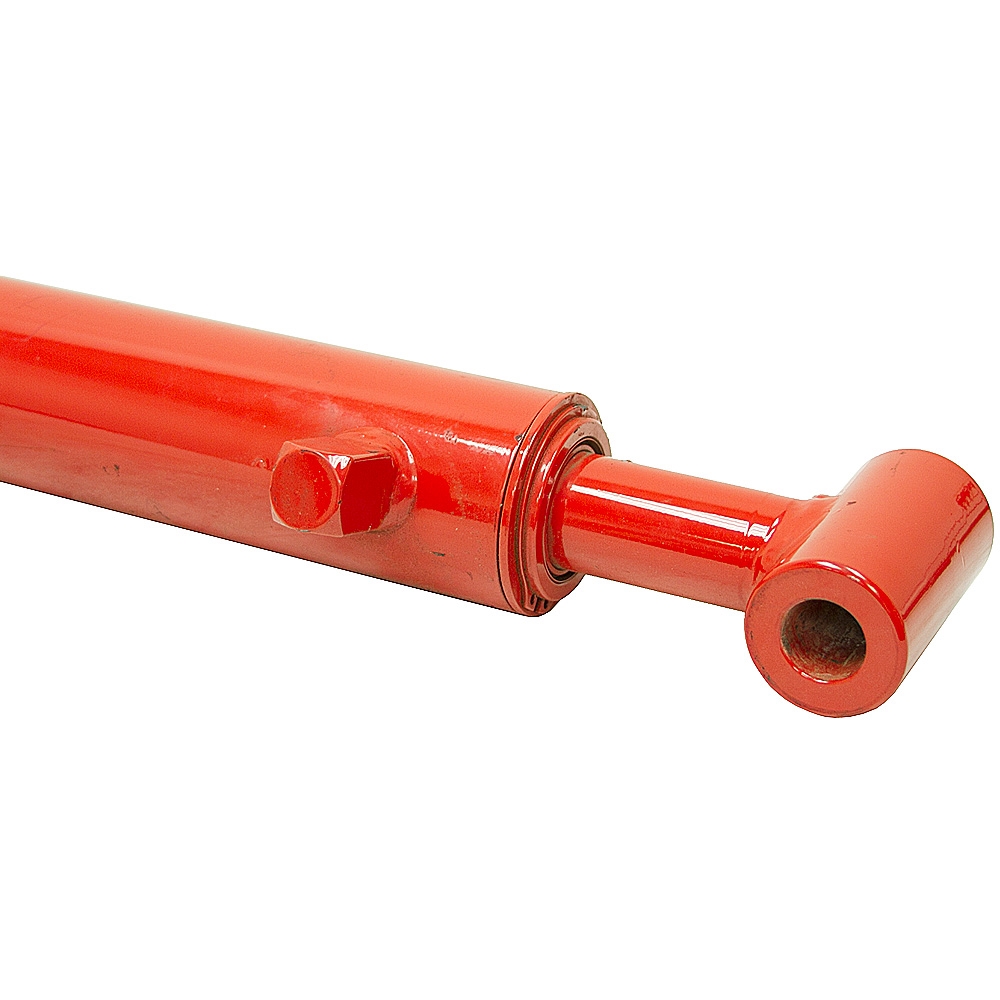

2.5x17.88x1.5 DA Hydraulic Cylinder 133928

2-1/2" X 17-7/8" X 1-1/2" HYDRAULIC LOADER CYLINDER
New, hydraulic cylinders manufactured by CROSS for MASSEY FERGUSON loaders. Welded construction. Snap ring retained gland cap. Ports in line with base pin hole. Ports face each other. Bucket cylinder for MASSEY FERGUSON MF1530 loaders.

SPECIFICATIONS
Double Acting Bore x Stroke 2-1/2" x 17-7/8" Pressure 3000 PSI max. Rod Dia. 1-1/2"	Ports SAE 8 Retracted Length 27-1/8" Shpg. 33 lbs.

END MOUNTINGS
Rod End Crosstube Outside Width 3-9/16" Pin Hole 1"	Base End Thru-hole Outside Width 2-7/8" Pin Hole 1"
