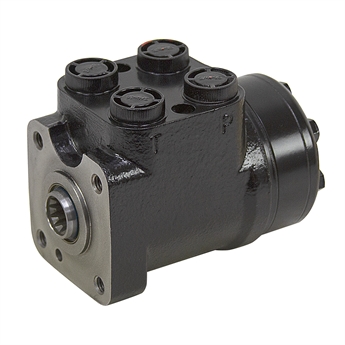

3.66 cu in Danfoss S1060AARAAAAAAAAAA Hydraulic Steering Valve

Item Number: 9-12919-E

Price: $229.95
TOP
Back to top

3.66 cu in Danfoss S1060AARAAAAAAAAAA Hydraulic Steering Valve

3.66 cu in Danfoss S1060AARAAAAAAAAAA Hydraulic Steering Valve

item number: 9-12919-E PRICE: $229.95 Out of Stock - No Longer Available
Calculate Shipping for Item 9-12919-E
3.66 cu in Danfoss S1060AARAAAAAAAAAA Hydraulic Steering Valve
Item Number: 9-12919-E
Price: $229.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
3.66 cu in DANFOSS HYDRAULIC STEERING VALVE
New. DANFOSS S1060ARAAAAAAAAAA open center non reaction steering valve.

Non-load reaction - Steering cylinder ports are blocked in neutral, locking the axle position when the operator releases the steering wheel.

SPECIFICATIONS
  • Model  S1060ARAAAAAAAAAA
  • Displacement 3.66 cu. in. / rev.
  • Rated input flow 4-11 GPM
  • Pressure 3045 PSI max.
  • Back Pressure 580 PSI max.
  • Power Steering Torque 24.8 in-lbs. max.
  • Manual Steering Torque 1203.7 in-lbs. max.
  • Load circuit Open center, non-load reaction
  • Filtration ISO 18-15 (NAS 9)
  • Ports SAE 8
  • Mount Four 3/8"-16 tapped holes on 3-1/4" B.C., 1-3/4" pilot
  • Valve Mount Two 3/8"-24 tapped holes on 2-3/8" centers
  • Shaft 12T spline, 0.612" deep (no column)
  • Overall size 5.75" x 3.875" x 3.25"
  • Shpg. 15 lbs.
