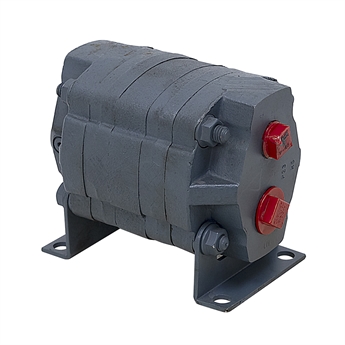

12 GPM 2 Section Rotary Flow Divider Delta P23

50:50 ROTARY FLOW DIVIDER
Old unused inventory, Delta P23 rotary flow divider. Divide the flow from one source into two equal or proportionate circuits, and intensify or reduce the pressure level as required. Note that these flow dividers will operate in reverse in a combine mode, but in that mode, the accuracy likely would be significantly reduced.


SPECIFICATIONS

• Brand Delta Power Company
• Model P23
• Flow Division 50:50
• Input Flow 12 GPM
• Max. Intermittent Pressure2000 PSI
• Max. Continuous Pressure1500 PSI
• Input Port 3/4" NPT
• Outlet Port 1/2" NPT
• Mount Four 0.43" holes on 4-3/4" x 2-3/4" centers
• Size 5-3/8" x 3-1/2" x 4-7/8"
• Shpg 18 lbs.
