67.8 CFM 12 Volt DC Fan w/Heatsink

12VDC VARIABLE SPEED FAN WITH HEATSINK

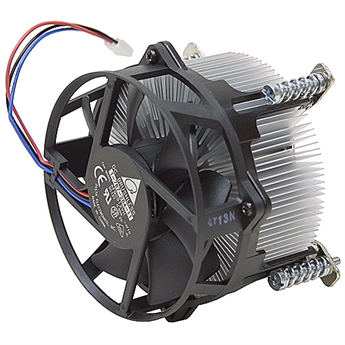

New Delta AFB0912VH 3.75" dia x 1" variable speed brushless processor fan with heatsink. The Heatsink is an aluminum fin outer body with a copper core that will dissipate heat at a faster rate. The speed of the fan is controlled by apulse width modulator, by internal controls of the cpu or a constant 12 VDC for continuous speed. Four spring loaded bolts that maintain constant contact mount on 4" diameter bolt circle.

Specifications

• Rated Voltage: 12 VDC
• Voltage Range: 7 - 13.8 VDC
• Amps: 0.6
• Max CFM: 67.8
• Max dB: 45 dB-A
• Fan: 7 Blade 3.375" diameter x 1" height / 90mm diameter x 25.4mm height
• Heatsink: 3.625" O.D. x 1.5" tall
• Copper core diameter 1.4"
• 4 spring loaded bolts that maintain constant contact that mount on 4" dia BC
• Shpg 3 lb
