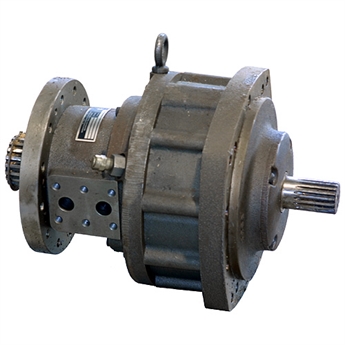

15.4 cu in HTL MHA250CC207BV125 Hydraulic Motor

RADIAL PISTON MOTOR
New HTL hydraulic radial piston motor provides very high torque at low speeds. Simple but rugged design with few moving parts enables efficient operation and reduced long term maintenance. Smooth operation to 1 RPM. Extra large tapered roller bearings enable high radial and axial shaft loading. Interchangeability with other well known makes of piston motors. Cont pressure 3000 PSI, max peek 5000 PSI. Five radial piston design. Case drain equipped.

SPECIFICATIONS

• Model MHA 250
• 15.4 cu in
• 203 ft lbs at 1000 PSI
• 6.7 GPM per 100 RPM
• 40 HP max
• 700 RPM max
• Output Rotating shaft 20 tooth spline 12/24
• 4 bolt front mount
• Ports 3/4" SAE flange
• Shpg 150 lbs
