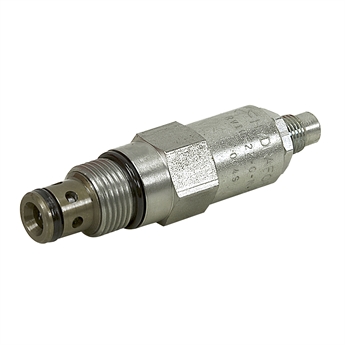

Hydraforce Relief Valve Cartridge Valve RV10-22A-0-N-35

HYDRAFORCE RELIEF VALVE RV10-22A-0-N-35

New, Hydraforce. A screw-in, cartridge-style, direct-acting, differential area poppet-type, hydraulic relief valve intended for use as a pressure limiting device in more demanding hydraulic circuits requiring low hysteresis and low internal leakage.
The RV10-22 blocks flow from 2 to 1 until sufficient pressure is present at 2 to force the spring-opposed poppet from its seat. The cartridge offers smooth transition in response to load changes in common hydraulic circuits.

SPECIFICATIONS

• Brand HydraForce
• Model RV10-22A-0-N-35
• Type Relief, Direct Acting, Differential Area Poppet Type
• Pressure Rating 3500 PSI max.
• Pressure Setting 300 - 3500 PSI, Adjustable
• Flow 30 GPM max.
• Fits into VC10-2 Cavity
• Features 1/4" Hex Allen head, Cartridge Only
• Overall Size 4-5/8" x 1-1/8" dia.
• Shpg. 1 lb.
