Hydraforce Relief Valve Cartridge Valve RV10-26-0-N-30/23.5

HYDRAFORCE RELIEF VALVE RV10-26-0-N-30/23.5

New, Hydraforce. A screw-in, cartridge-style, pilot-operated, two-stage, spool-type hydraulic relief valve, intended for use as a pressure limiting device in demanding hydraulic circuits which require fast response and low hysteresis.
The RV10-26 blocks flow from 1 to 2 until sufficient pressure is present at 1 to force the pilot relief off its seat, allowing the main stage to shift, opening 1 to 2. The cartridge offers smooth transition in response to load changes in demanding hydraulic circuits. Note: The RV10-26 cannot be used in cross-over relief applications.

SPECIFICATIONS

• Brand HydraForce
• Model RV10-26-0-N-30/23.5
• Type Relief, Pilot Operated, Spool Type
• Pressure Rating 3500 PSI max.
• Pressure Setting 400 - 3000 PSI, Factory preset (hidden) at 2350 PSI
• Flow 30 GPM max.
• Fits into VC10-2 Cavity

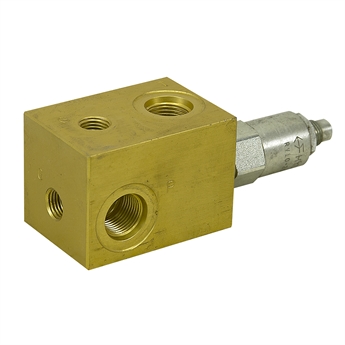

• Features Two 1/4"-20 x 9/16" Deep Tapped Holes on 1-1/2" Centers, Body has two ports labeled "P" and one port labeled "T," both SAE 8, and two 1/4" NPT ports labeled "G."
• Overall Size 5-5/8" x 2" x 2"
• Shpg. 2 lbs.
