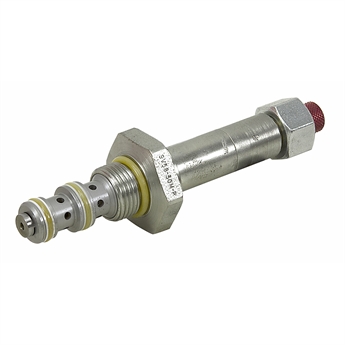

HYDRAFORCE SOLENOID OPERATED VALVE SV58-30M-0-P-00

New, Hydraforce. A solenoid-operated, 3-way, spool-type, screw-in hydraulic directional cartridge valve designed for high pressure operation up to 345 bar (5000 psi).
When de-energized, the SV58-30 allows flow from 2 to 1 while blocking flow at 3. When energized, the cartridge?s spool shifts to open from 3 to 2, while blocking flow out 1. Note: Port 1 must be connected to tank. Valve cannot withstand more than 276 bar (4000 psi) at the inlet of port 1.

SPECIFICATIONS

• Brand HydraForce
• Model SV58-30M-0-P-00
• Type Solenoid Operated On/Off Valve, Spool Type, Three Way, High Pressure
• Pressure Rating 5000 PSI max.
• Pressure Setting None
• Flow 4 GPM max.
• Fits into VC08-3 Cavity
• Features Manual Override, Cartridge Only, No Coil
• Overall Size 4-13/16" x 1-1/2"
• Shpg. 1 lb.
