Description
DESCRIPTION
4.12"(105mm) x 42.375"(1076mm) x 2.95"(75mm) DA HYD CYL

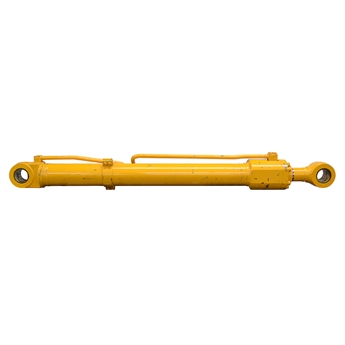

Unused old inventory. HYUNDAI double acting left hand hydraulic boom cylinder. Numbers on cylinder 31N4-50120.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.12"(105mm) x 42.375"(1076mm)
  • Barrel Thickness 0.337"
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 2.95"(75mm)
  • Ports ORFS 8
  • Retracted Length 63.625"
  • Gland Face to Rod Pin Center 6.875"
  • Shpg. 322 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.54"
  • Pin-Center-To-Tang-End 2.78"
  • Pin Hole 2.76"(70mm)
  • Base End Tang
  • Width 3.54"
  • Pin-Center-To-Tang-End 2.79"
  • Pin Hole 2.76"(70mm)
