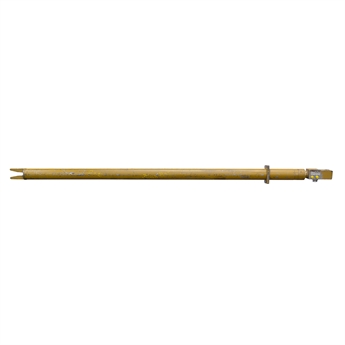

3.5" x 84" x 2.5" HYD CYL Unused old inventory. IOWA INDUSTRIAL HYDRAULICS M62790-040, welded, double acting hydraulic cylinder. Four bolt mounting flange. Slotted tab 4" x 5.5" on base end. Cylinder has RACINE holding valve cartridge in rod end manifold with no I.D. numbers.
SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3.5" x 84"
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.5"
- Rod Thickness 2.5"
|
- Ports SAE 8
- Retracted Length 21.25"
- Gland Face to Rod Pin Center 8.25"
- Shpg. 266 lbs.
|
END MOUNTINGS |
|
- Rod End Tang
- Width 3.25"
- Pin-Center-To-Tang-End 1.375"
- Pin Hole 1.75"
|
- Base End Four Bolt Mounting Flange
- Flange Dimensions 6.5" x 4.75"
- Flange Thickness 0.75"
- Bolt Holes 0.818" O.D.
- Hole Spacing 5" x 3" Centers
|
