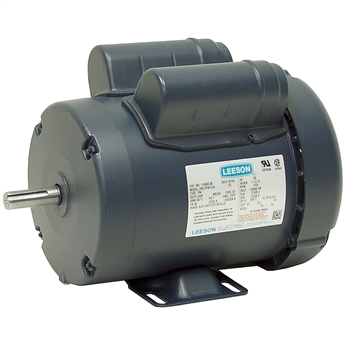

1 HP 1725 RPM 115/208-230 Volt AC Instant Rev Motor

1 HP 1725 RPM 115/208-230 VAC INSTANT REVERSING MOTOR

Brand new, LEESON model P6C17FB112D instant reversing electric motor. Specially designed for use on "instant-reversing" parking gates, doors, slide gates or other moderate starting torque instant reversing applications. Capable of frequent reversing service. Instant "plug-reversing" with simple three wire connection. Capacitor start induction run with solid state, instant reversing switch. Manual overload protection.

SPECIFICATIONS

• Catalog Number 114933.00
• Power 1 HP
• Voltage 115/208-230 AC
• Amperage 13.6/6.8 Amps
• Speed 1725 RPM
• Rotation Reversible
• Phase 1
• Service Factor 1.15
• Bearings Ball
• Enclosure ODP
• Duty Cont.
• Frame 56H
• Base Mount Four 0.33" on 3" x 4-7/8" to 5-5/8" centers
• Shaft 5/8" dia. X 2" w/3/16" keyway
• Size 9-3/4" x 9" x 8-3/8"
• Shpg. 33 lbs.
