Description
DESCRIPTION

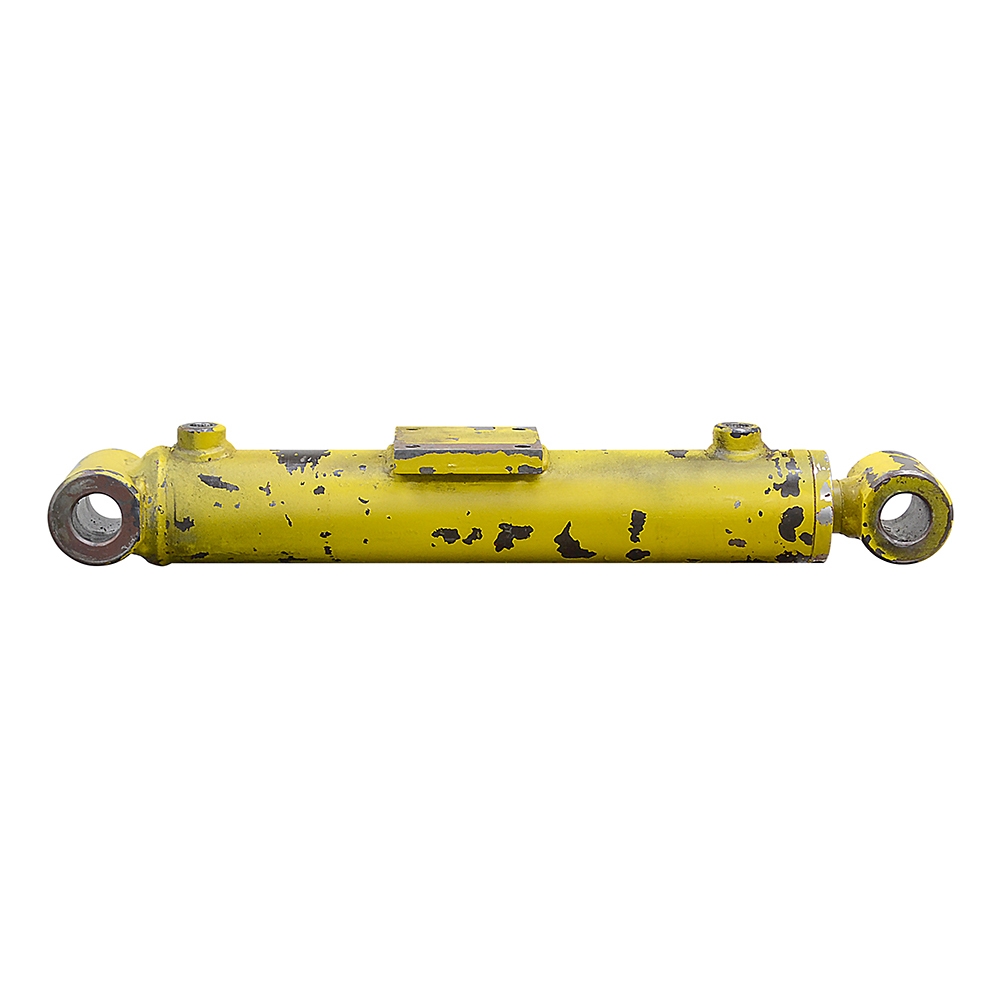

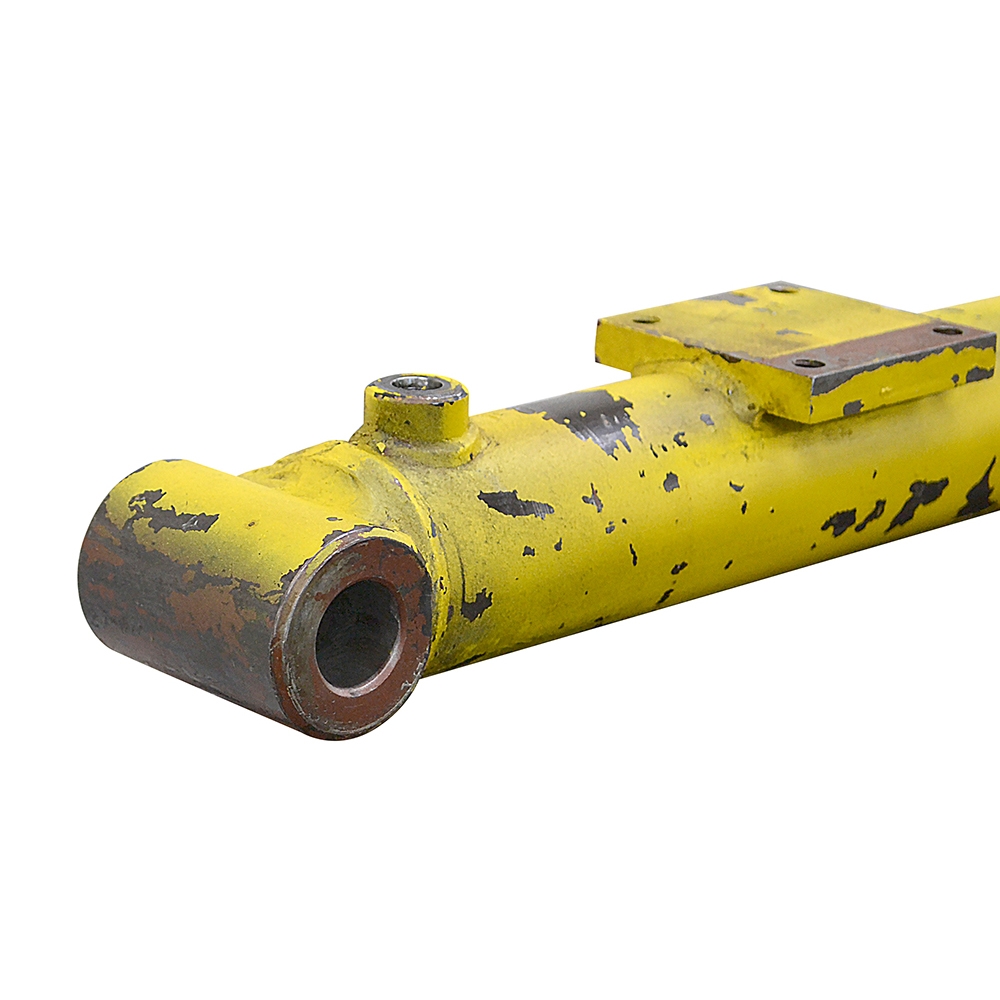

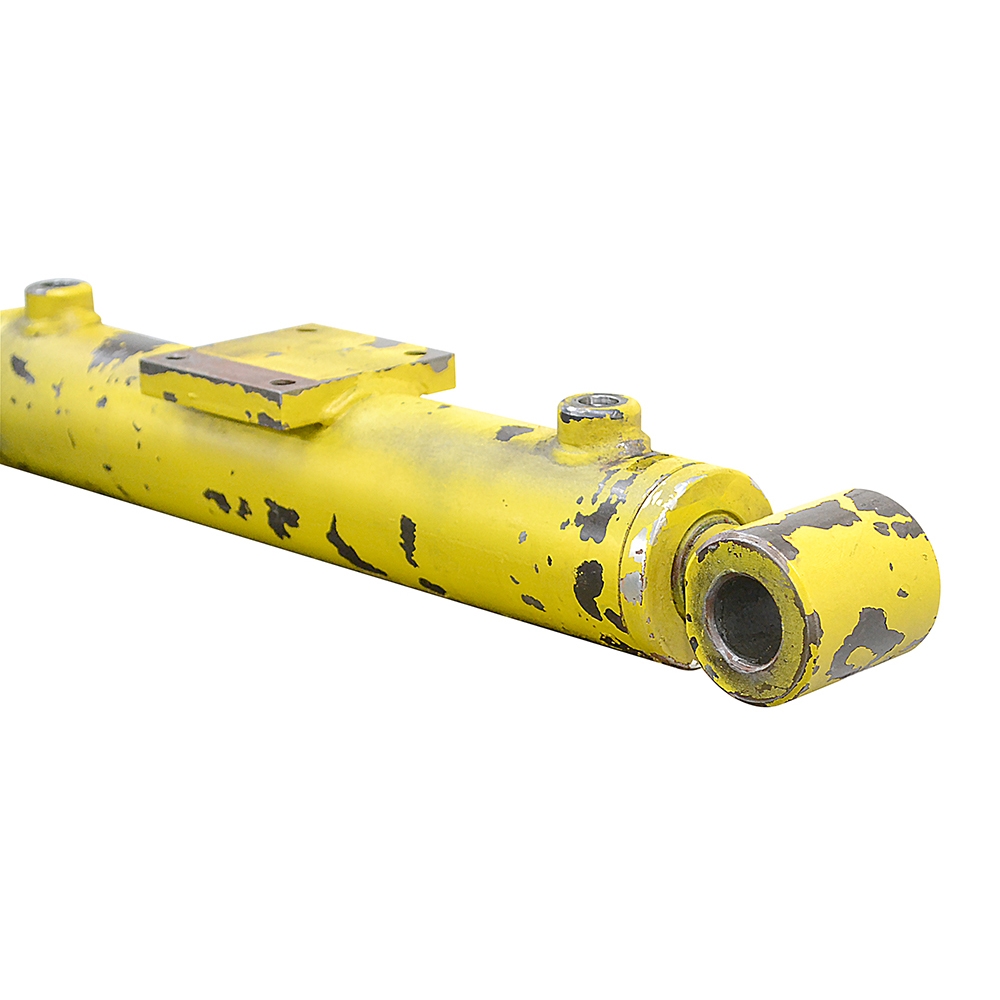

2" x 9" x 1.125" DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder with a 3" x 3" x 0.511" mounting plate with four 3/8"-16 TPI threaded holes on 2.25" x 2.25" centers.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2" x 9"
  • Gland Retainer Wire ring
  • Pressure 2500 PSI max.
  • Rod Dia. 1.125"
  • Ports SAE 4
  • Retracted Length 16.5"
  • Gland Face to Rod Pin Center 1.5"
  • Shpg. 18 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 2"
  • Width 2.25"
  • Pin Hole 1"
  • Base End Cross-Tube
  • O.D. 2"
  • Width 3"
  • Pin Hole 1"
