Description

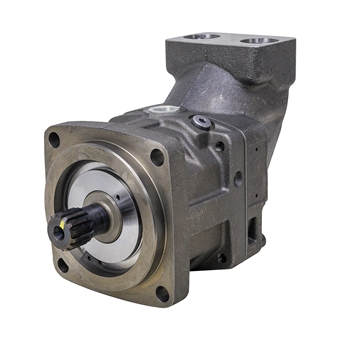

3.65 cu in PARKER F12-060-MU-SV-S-000-0000-P0 HYDRAULIC PISTON MOTOR
New, Parker F12-060-MU-SV-S-000-0000-P0 bent-axis, fixed diplacement piston motor. It can be used in numerous applications in both open and closed loop circuits. Set up for ferrostat differential (Hall-effect) speed sensor, not included or needed for operation, not available at Surplus Center.

SPECIFICATIONS
  • Brand Parker
  • Model F12-060-MU-SV-S-000-0000-P0
  • Family F12
  • Displacement 3.65 cu. in. / rev.
  • Motor Type Piston
  • Rotation Reversible
  • Pressure:
       6500 PSI cont.
       7250 PSI int.
  • Torque:
       3776 in-lbs. @ 6500 PSI
       4212 in-lbs. @ 7250 PSI
  • Speed:
       5800 RPM cont.
       6400 RPM int.
  • Flow:
       83.7 GPM cont.
       91.7 GPM int.
  • Mount 4 Bolt SAE C
  • Shaft 1-1/4" dia. 14T spline
  • Ports SAE 16
  • Case Drain SAE 10
  • Size 10-1/2" x 5-3/4" x 7-1/2"
  • Shpg. 48 lbs.
