2.25x9.625x1.25 DA Hydraulic Trunnion Cylinder

Item Number: 9-8390

Price: $79.99
TOP
Back to top

2.25x9.625x1.25 DA Hydraulic Trunnion Cylinder

  • 2.25x9.625x1.25 DA Hydraulic Trunnion Cylinder
  • 2.25x9.625x1.25 DA Hydraulic Trunnion Cylinder - Alternate 1
  • 2.25x9.625x1.25 DA Hydraulic Trunnion Cylinder - Alternate 2
  • 2.25x9.625x1.25 DA Hydraulic Trunnion Cylinder - Alternate 3

2.25x9.625x1.25 DA Hydraulic Trunnion Cylinder

item number: 9-8390 PRICE: $79.99 Out of Stock - No Longer Available
Calculate Shipping for Item 9-8390
2.25x9.625x1.25 DA Hydraulic Trunnion Cylinder
Item Number: 9-8390
Price: $79.99
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION

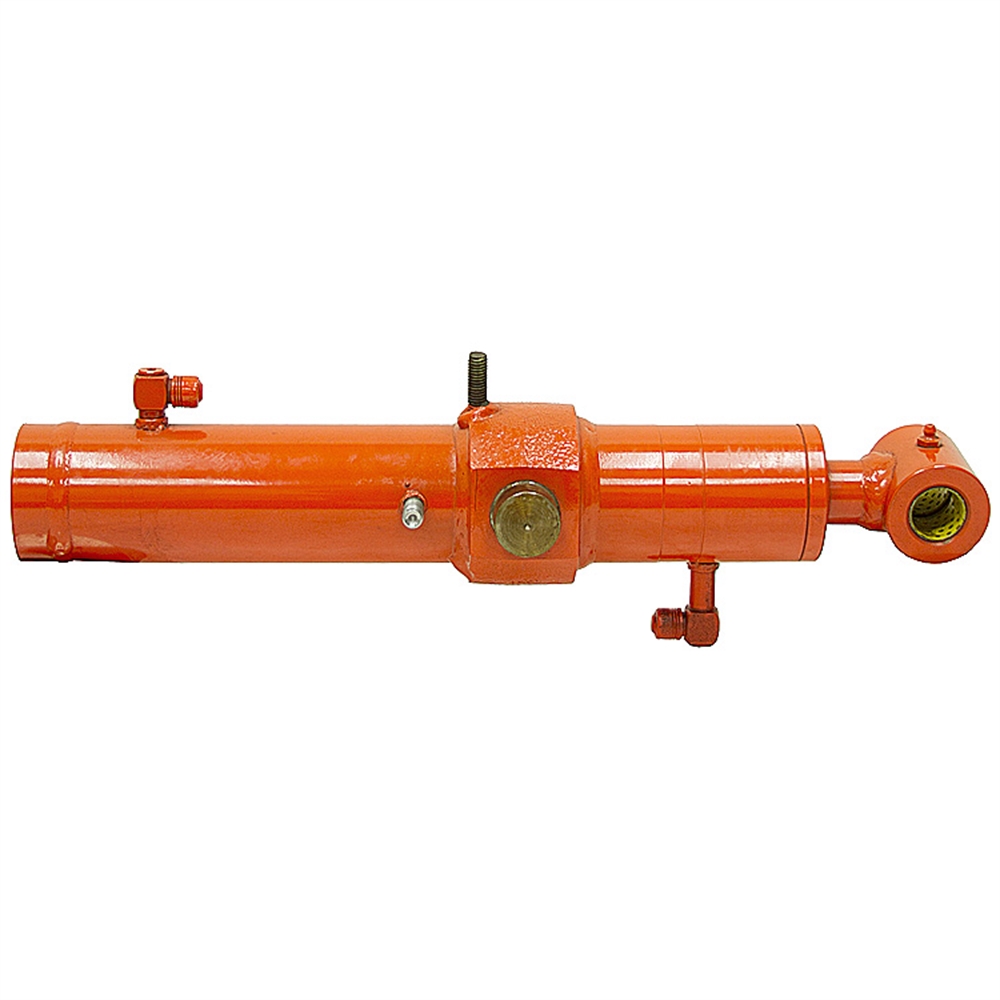

2-1/4" x 9-5/8" x 1-1/4" DOUBLE ACTING HYDRAULIC TRUNNION CYLINDER
New, PRINCE welded double acting hydraulic cylinder with trunnion mount. Welded construction with internal threaded gland.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2-1/4" x 9-5/8"
  • Pressure 3000 PSI max.
  • Rod Dia. 1-1/4"
  • Ports JIC 6
  • Retracted Length 7-3/4"
  • Shpg. 22 lbs.
END MOUNTINGS
  • Rod End Crosstube
  • Outside Width 2-5/16"
  • Pin Hole 25 mm (0.984")
  • Trunnion Male
  • Pin Outside Width 4.96"
  • Pin Inside Width 3.34"
  • Pin Center to Rod Pin Center 7-3/4"
  • Pin Center to Base End 9-3/8"
  • Trunnion Pin Size 30 mm (1.18")
  • Trunnion Pin Length 0.81"
