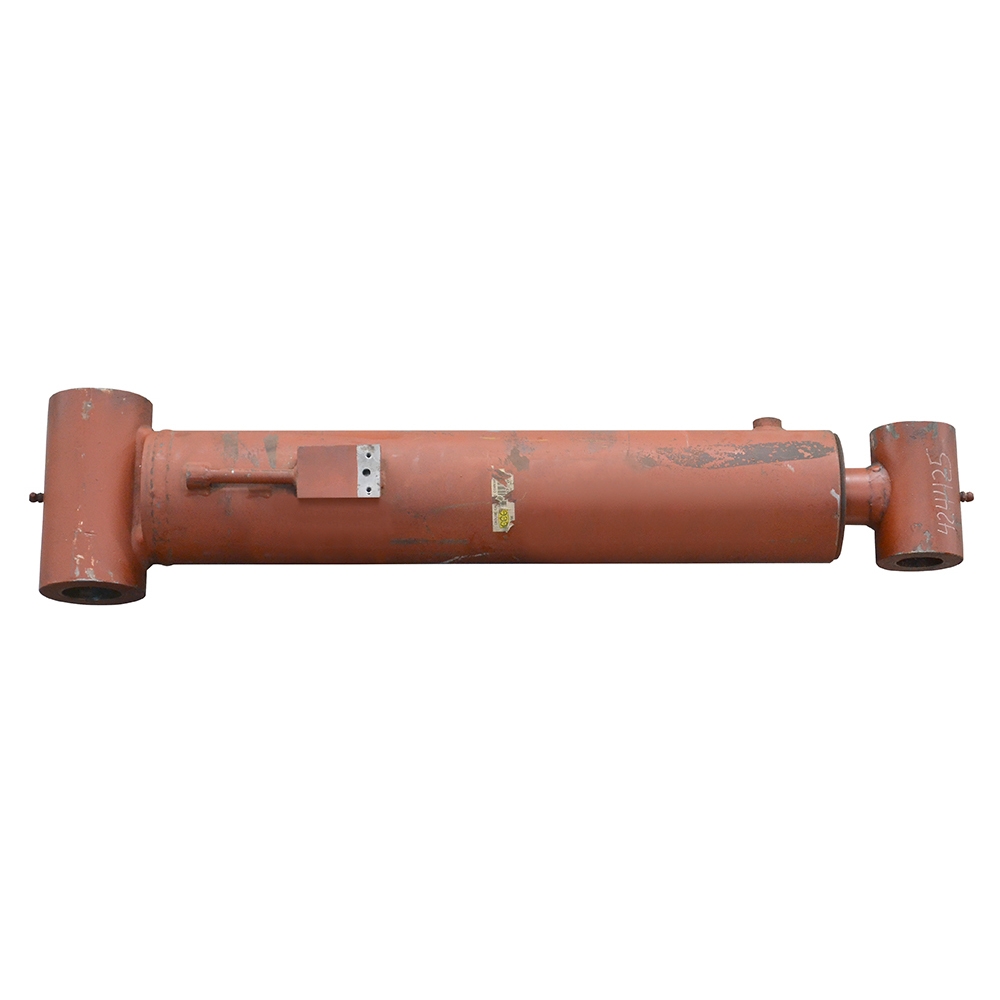

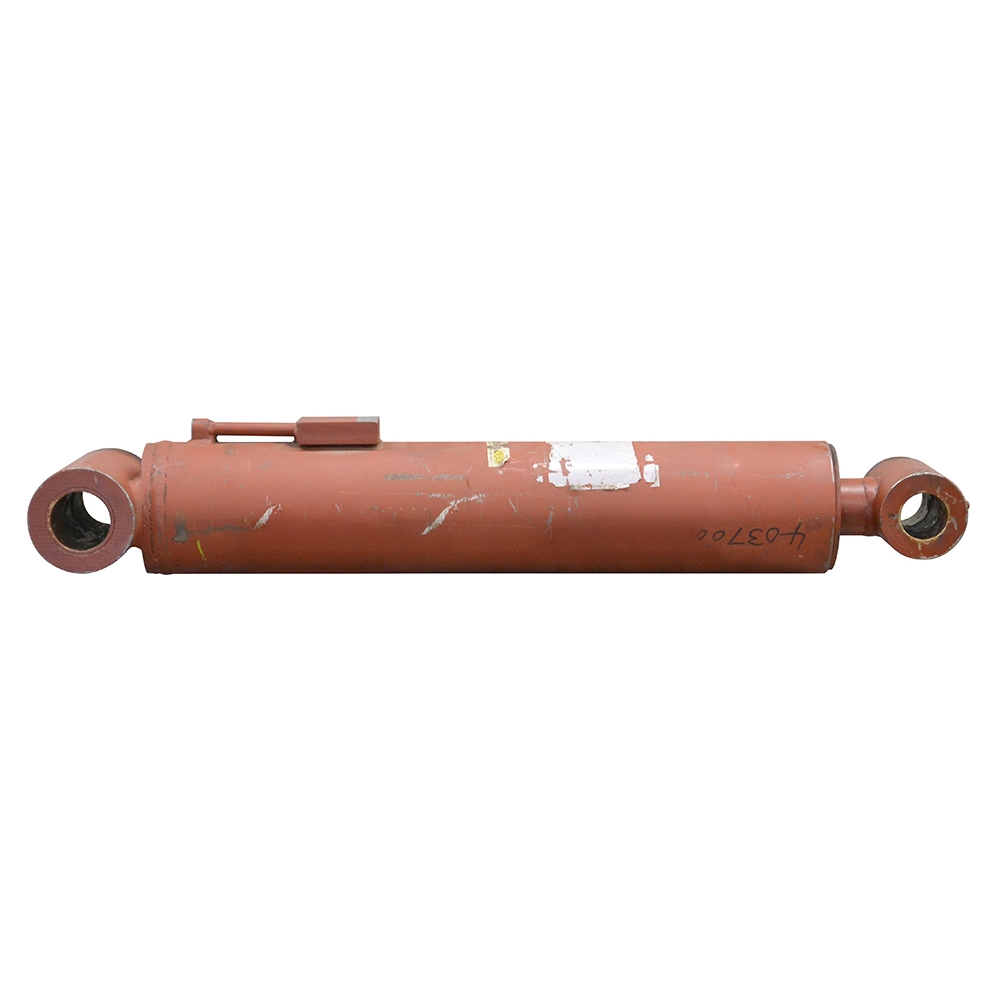

5" x 22" x 2.5" DA HYD CYL
Unused old inventory. SIMON HYDRAULICS double acting hydraulic cylinder.
Numbers on cylinder 04037000R.
Piston seals leak by and rod seals leak.
SPECIFICATIONS
|
- Double Acting
- Bore x Stroke 5" x 22"
- Barrel Thickness 0.4"
- Gland Retainer Threaded in gland
- Pressure 3000 PSI
- Rod Dia. 2.5"
|
- Extend Port 2 bolt flang 1/4"-20 drilled and tapped holes on 1.5" centers with 0.35" port hole
- Retract Port SAE 8
- Retracted Length 35.625"
- Gland Face to Rod Pin Center 3.75"
- Shpg. 202 lbs.
|
END MOUNTINGS | |

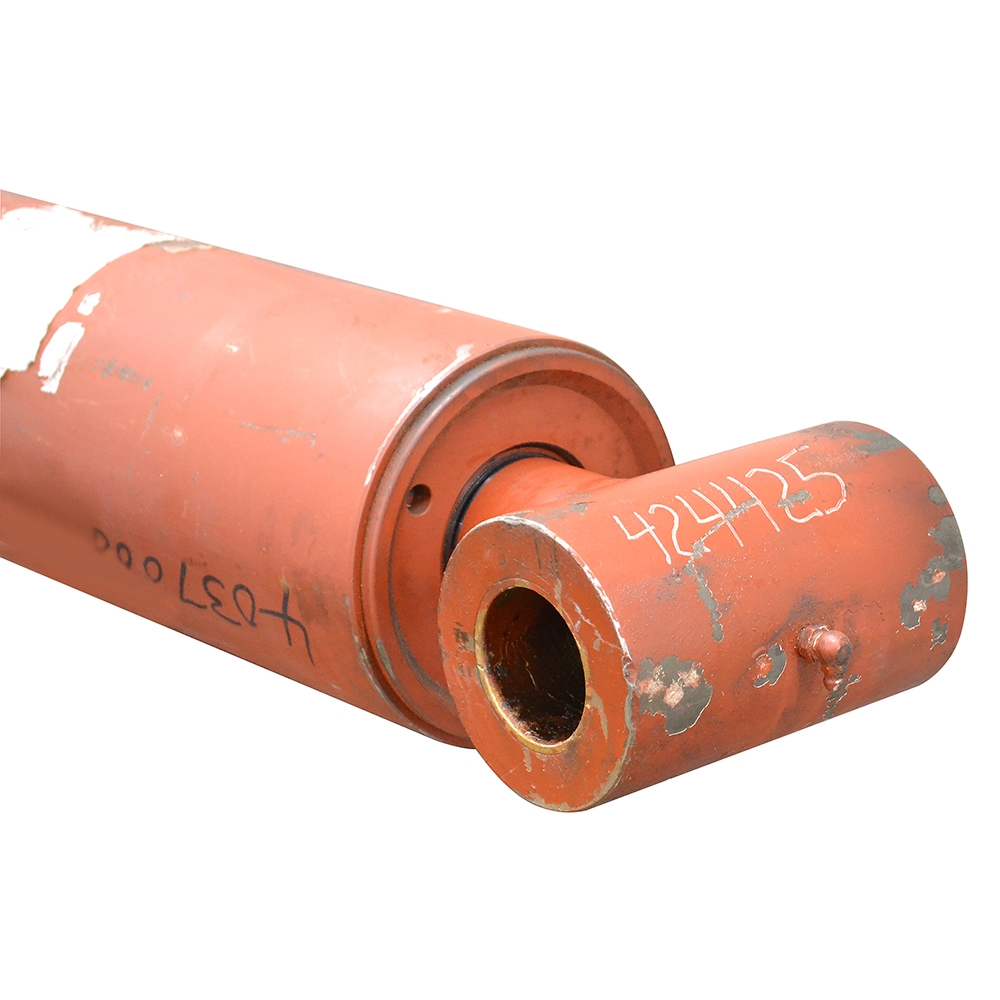

- Rod End Crosstube
- O.D. 3.76"
- Width 6"
- Pin Hole 2"
|

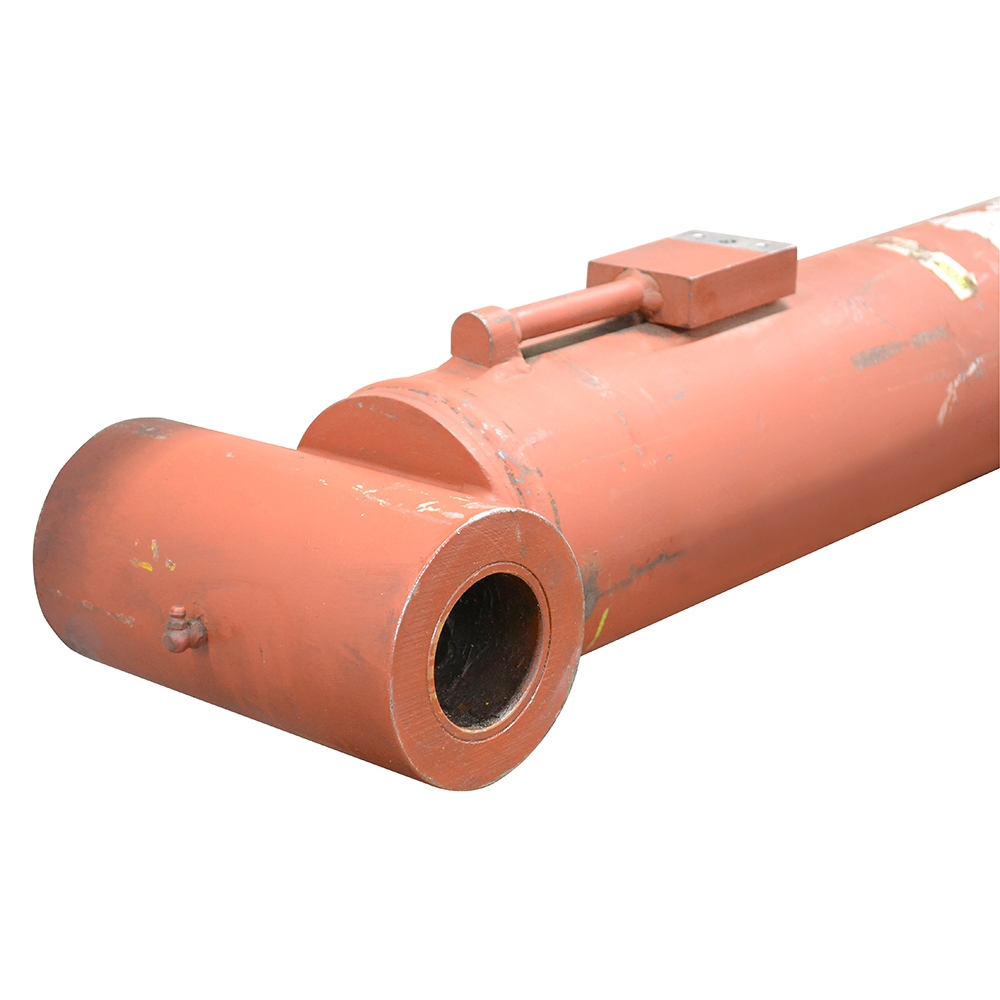

- Base End Crosstube
- O.D. 4.46"
- Width 8.5"
- Pin Hole 2-1/2"
|
