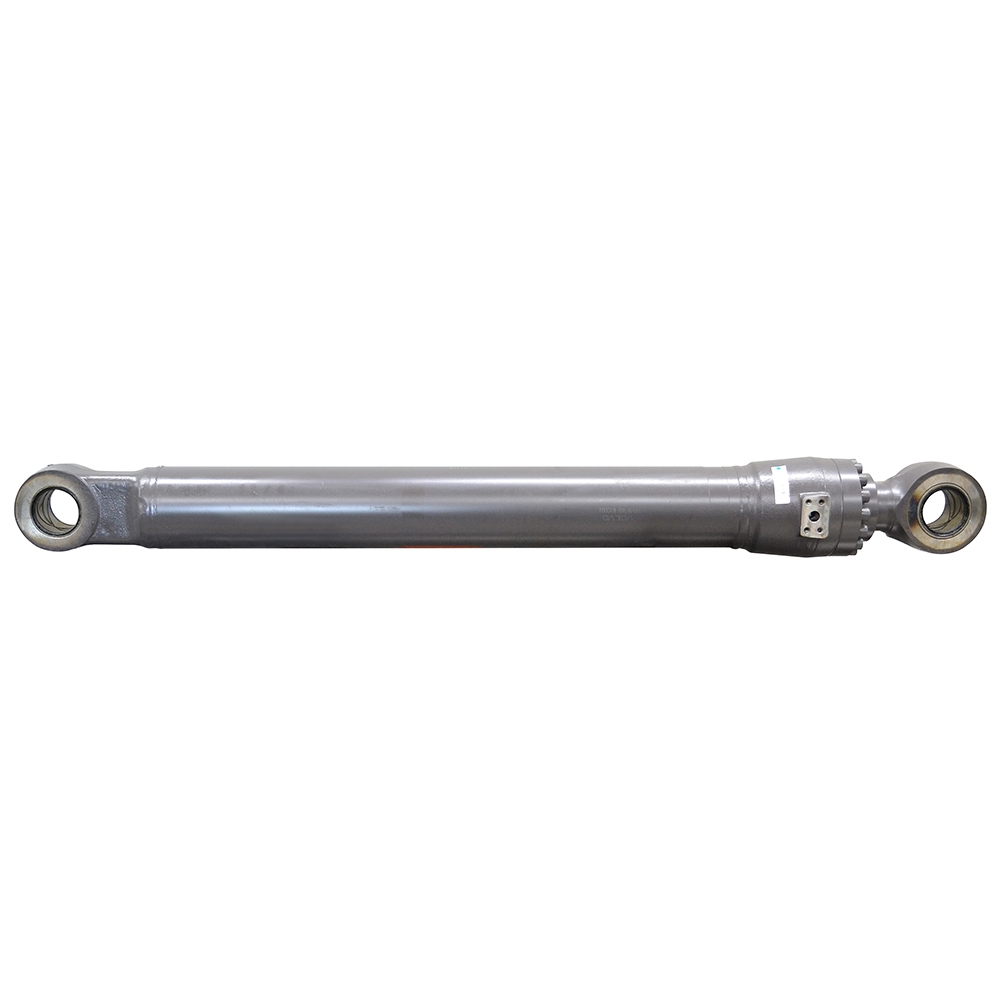

  • 5.11(130mm)x40.75(1035mm)x3.54(90mm) DA Hydraulic Cylinder

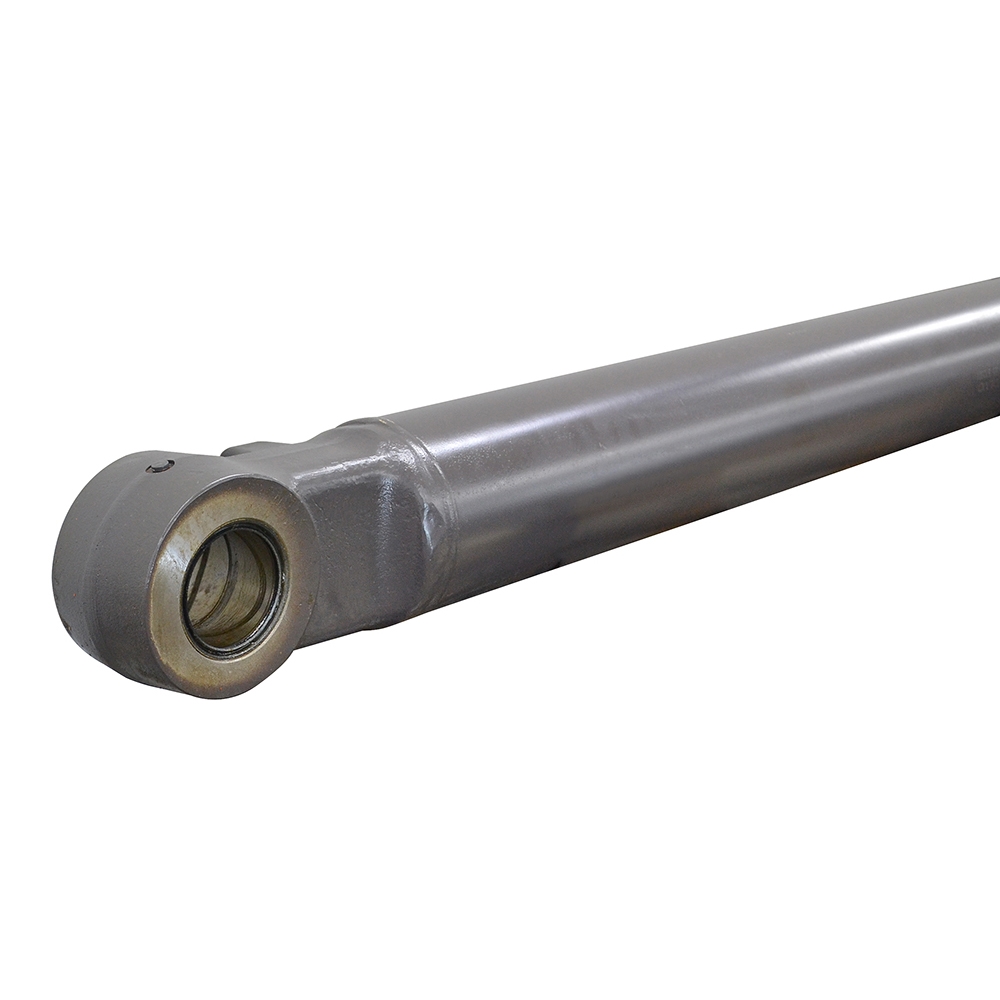

  • 5.11(130mm)x40.75(1035mm)x3.54(90mm) DA Hydraulic Cylinder - Alternate 1

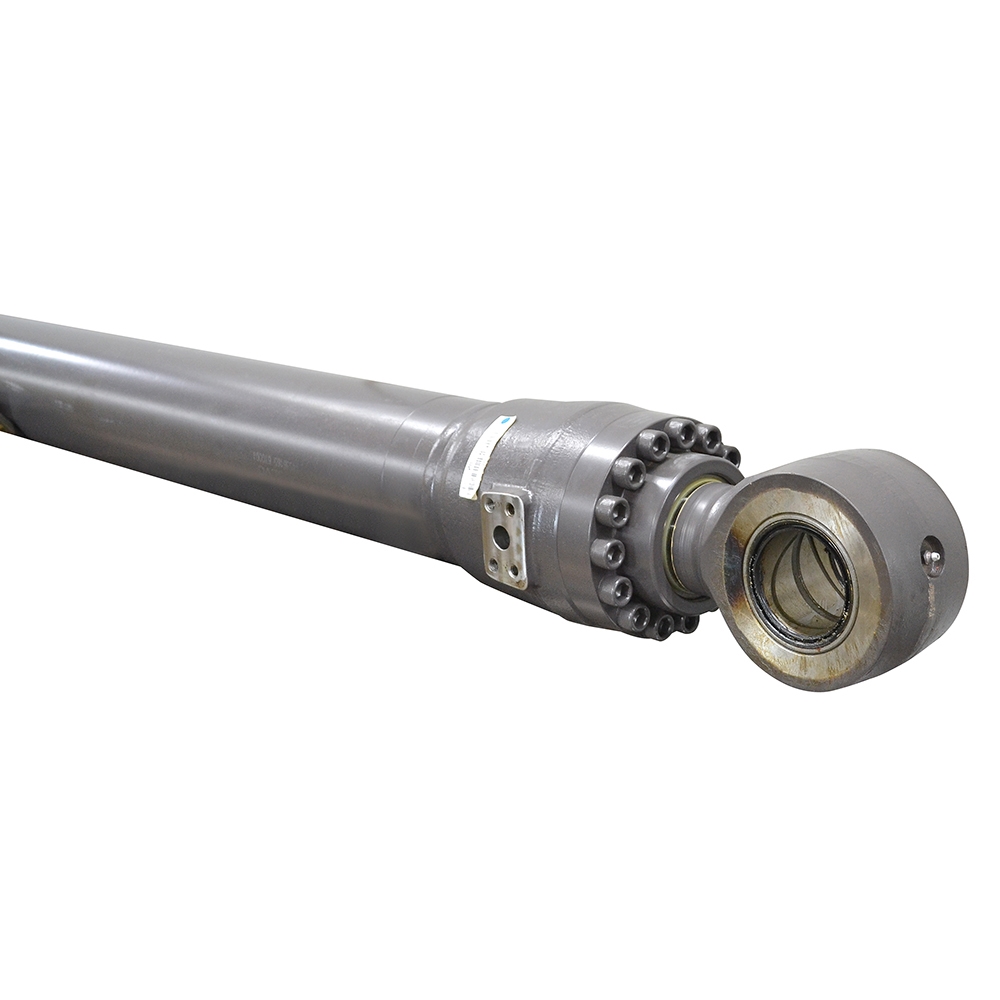

  • 5.11(130mm)x40.75(1035mm)x3.54(90mm) DA Hydraulic Cylinder - Alternate 2

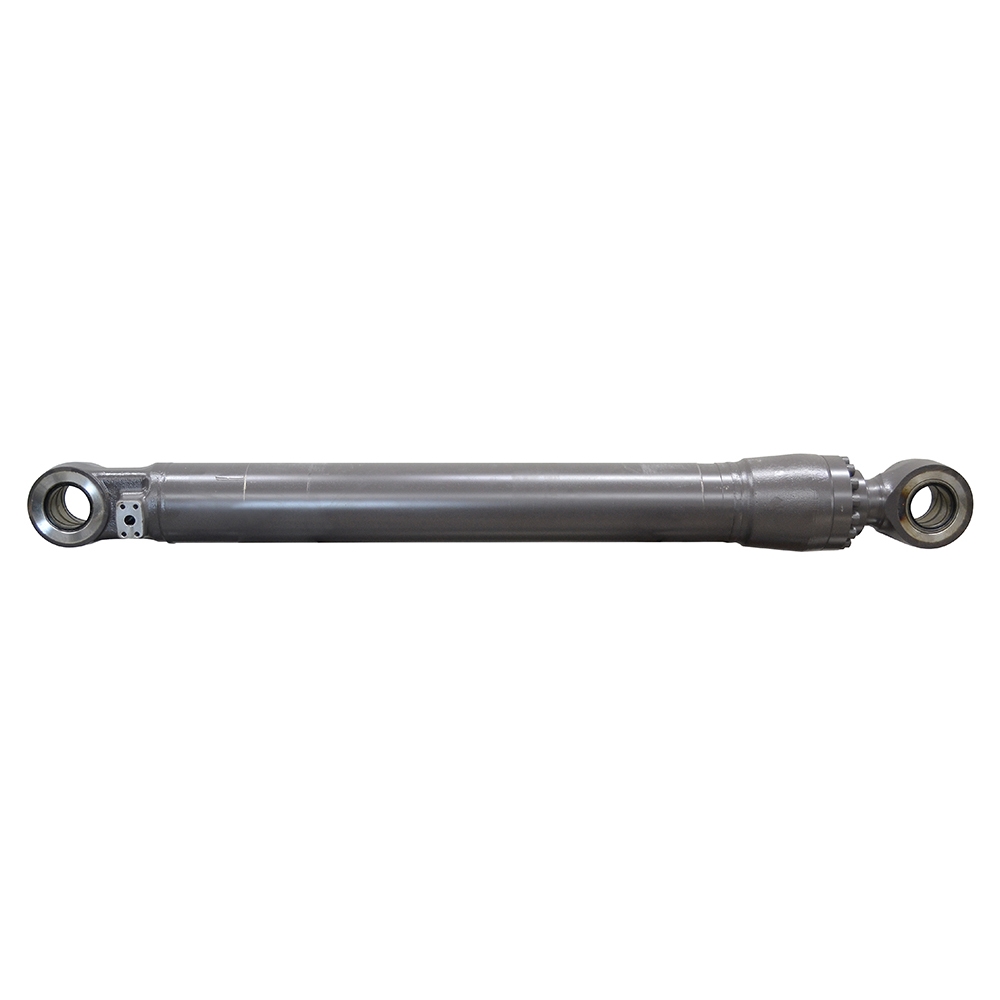

  • 5.11(130mm)x40.75(1035mm)x3.54(90mm) DA Hydraulic Cylinder - Alternate 3

5.11(130mm)x40.75(1035mm)x3.54(90mm) DA Hydraulic Cylinder

item number: 9-20181 PRICE: $399.95 Out of Stock - No Longer Available
Must ship via Truck Freight
Please contact us for a quote
Calculate Shipping for Item 9-20181
5.11(130mm)x40.75(1035mm)x3.54(90mm) DA Hydraulic Cylinder
Item Number: 9-20181
Price: $399.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION
5.11"(130mm) x 40.75"(1035mm) x 3.54"(90mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. VOLVO numbers on cylinder 175374 EC210B OPT-BKT 14536165 610001.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.11"(130mm) x 40.75"(1035mm)
  • Barrel Thickness 0.434"
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.54"(90mm)
  • Ports 4 bolt 3/4" code 62 flange size 12
  • Retracted Length 63.75"
  • Gland Face to Rod Pin Center 5"
  • Shpg. 426 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.94"
  • Pin-Center-To-Tang-End 3.25"
  • Pin Hole 3.15"(80mm)
  • Base End Tang
  • Width 3.94"
  • Pin-Center-To-Tang-End 3.03"
  • Pin Hole 3.15"(80mm)
