5.31(135mm)x60.625(1540mm)x3.74(95mm) DA Hydraulic Cylinder Volvo 1146-00020

Item Number: 9-20582

Price: $549.95
TOP
Back to top

5.31(135mm)x60.625(1540mm)x3.74(95mm) DA Hydraulic Cylinder Volvo 1146-00020

  • 5.31(135mm)x60.625(1540mm)x3.74(95mm) DA Hydraulic Cylinder Volvo 1146-00020
  • 5.31(135mm)x60.625(1540mm)x3.74(95mm) DA Hydraulic Cylinder Volvo 1146-00020 - Alternate 1
  • 5.31(135mm)x60.625(1540mm)x3.74(95mm) DA Hydraulic Cylinder Volvo 1146-00020 - Alternate 2
  • 5.31(135mm)x60.625(1540mm)x3.74(95mm) DA Hydraulic Cylinder Volvo 1146-00020 - Alternate 3

5.31(135mm)x60.625(1540mm)x3.74(95mm) DA Hydraulic Cylinder Volvo 1146-00020

item number: 9-20582 PRICE: $549.95 Out of Stock - No Longer Available
Must ship via Truck Freight
Please contact us for a quote
Calculate Shipping for Item 9-20582
5.31(135mm)x60.625(1540mm)x3.74(95mm) DA Hydraulic Cylinder Volvo 1146-00020
Item Number: 9-20582
Price: $549.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION

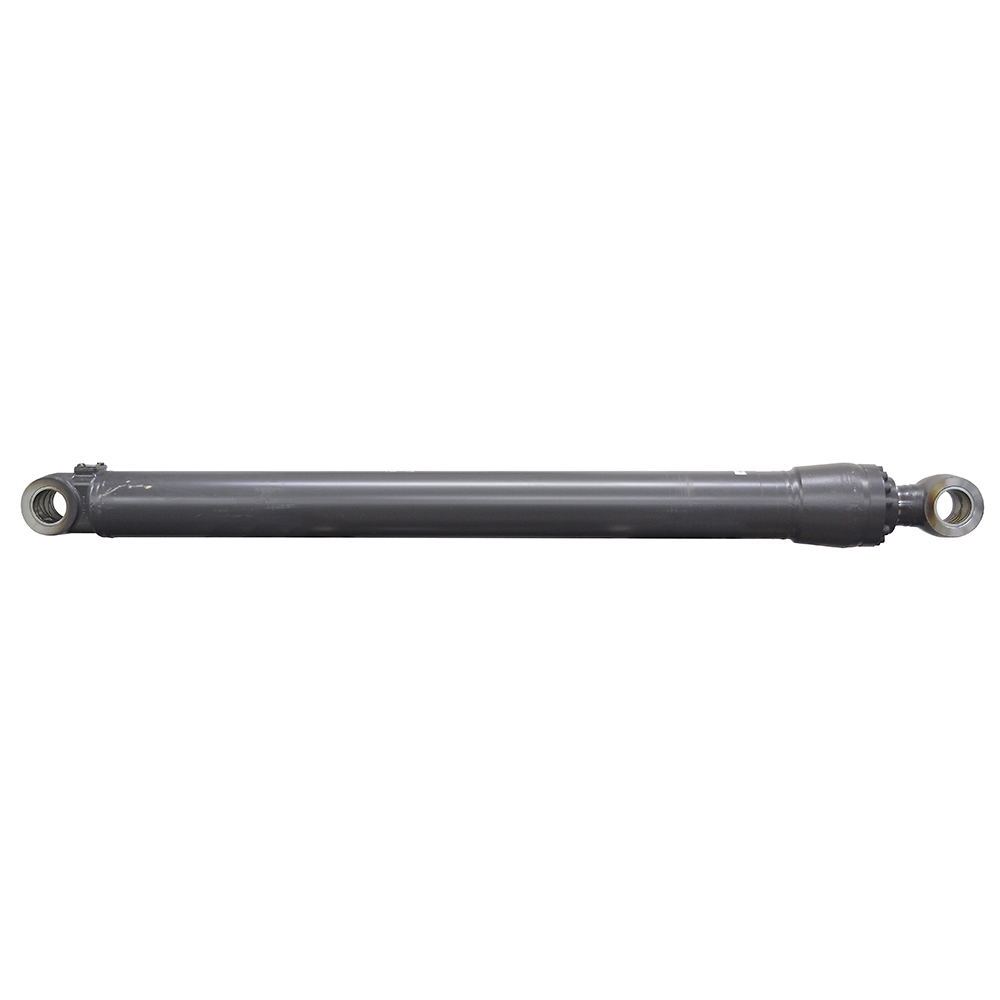

5.31"(135mm) x 60.625"(1540mm) x 3.74"(95mm) DA HYD CYL
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 1146-00020.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.31"(135mm) x 60.625"(1540mm)
  • Barrel Thickness 0.4"
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 3.74"(95mm)
  • Extend Port 4 bolt 1" code 61 flange size 16
  • Retract Port 4 bolt 3/4" code 61 flange size 12
  • Retracted Length 83"
  • Gland Face to Rod Pin Center 5.25"
  • Shpg. 665 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 4.72"
  • Pin-Center-To-Tang-End 2.95"
  • Pin Hole 3.15"(80mm)
  • Base End Tang
  • Width 4.72"
  • Pin-Center-To-Tang-End 2.95"
  • Pin Hole 3.15"(80mm)
