Description

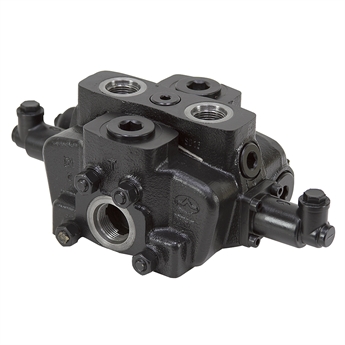

1 SPOOL 37 GPM WALVOIL OPEN CENTER PILOT OPERATED CONTROL VALVE
New, WALVOIL SD16 directional control valve. Cast iron body with Buna-N O-rings. Optional in and out ports on top or side. Can be converted to Closed Center or Power Beyond by adding internal M18x1.5 plug (not included).


SPECIFICATIONS

  • Open Center Pilot Operated Spring Centering
  • Spools One
  • Flow 37 GPM max.
  • Pressure 4,600 PSI max.
  • Relief Valve Adj. set at 3,260 PSI
  • Pilot Pressure 84 PSI Full Shift, 276 PSI max.
  • Reqd. Filtration 20 micron
  • Pilot Ports SAE 6
  • In/Out Ports SAE 16
  • Work Ports SAE 12
  • Mount 4 tapped holes on bottom
       4-15/16" x 3-15/16" centers
  • Size 12" x 6-3/4" x 4-1/2"
  • Shpg. 33 lbs.
Spool Details:
  Spool 1 Double acting cylinder spool, spring-to-center, 3-position

Warranty
90 Day Surplus Center WarrantyView Warranty
Warranty Information

Products we regularly stock that are purchased directly from the manufacturer are covered by that manufacturers warranty.


We warrant all other products, only to the original purchaser, to be free from defects in materials and workmanship for a period of 90 days from date of shipment.


Because we have no assurance of the purposes for which any of the items herein will or may be used, no warranty is given as to the fitness of the item for any particular purpose. You have the responsibility for determining the suitability of items herein for your particular use. We shall not be liable for incidental or consequential damages.


NOTE! Warranties do not cover bent hydraulic cylinder shafts.


We shall, at our option, repair or replace any items deemed by us to be defective under this warranty. Items returned by the purchaser for warranty adjustment must be handled as stated in our return policy. Proof of, and date of purchase will be required.


Remedies under this warranty shall be limited to the original purchase price of the claimed defective item. (Some states do not allow limitations on implied warranties, incidental or consequential damages, thus, some of the limitations or exclusions referred to above may not apply to you.)


In no event shall we be liable for any damages, or warrant any of our products which are made defective as a result of damage in shipment, user's abuse, neglect or improper operation.



Ask A Question
Submit a question for this product

Showing Questions of 3

Can this valve be converted to closed center?

A: Yes. By removing the steel plug in the top of the outlet section, you will expose the threaded cavity in the inner wall which accepts a M18x1.5 hollow hex head plug (not included). With this plug installed, the side port becomes the Power Beyond/High Pressure Carryover port and the top port becomes the Tank/Return port. For Closed Center operation, simply move the steel plug to that same side port and use the top port as Tank/Return.

is this valve operated from pilot with air or hydraulics

A: The pilot flow is intended to be hydraulic.

are the work ports blocked in netural

A: Yes.
