Description
CLUTCH BRAKE

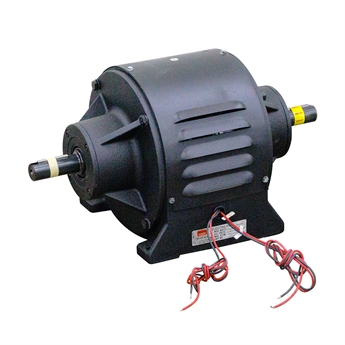

New, Warner Electric EP-825 5231-273-002 electro pack. Rugged, pre-assembled clutch and brake combinations in an enclosed, foot mounted housing. Factory aligned, pre-assembled and have been designed to mate easily with industry standard motors and reducers with v-belts, pulleys, chain and sprockets, in line couplings and timing belt drives.

SPECIFICATIONS
  • Brand Warner Electric
  • Model EP-825
  • Series EP
  • Part Number 5231-273-002
  • Max RPM 3600
  • Voltage 90 Volt DC
  • Horsepower @ 1800 RPM 7-1/2
  • Static Torque Brake (ft-lb) 125 (ft-lb)
  • Static Torque Clutch 125 (ft-lb)
  • Input/Output Shaft Size 1.125" w/ 0.25" sq. Key
  • Mount Four 0.406" dia. holes on 8.5" x 8.5" centers
  • Size 20-1/32" x 11-39/64" x 10-13/16"
  • Shpg 176 lbs.
