41.22:1 Size 67 2 HP Inline Cast Iron Gear Reducer Worldwide WINL67-40/1-145TC

41.22:1 SIZE 67 2 HP INLINE GEAR REDUCER
Brand new, World Wide Electric helical inline speed reducer. Cast iron housings. Drop-in replacement for most major inline reducer brands. Gearbox flanges are designed to accept NEMA C-Face electric motors.

SPECIFICATIONS

• Model Number WINL67-40/1-145TC
• Box Size 67
• Stages 3
• Nominal Ratio 40:1
• Actual Ratio 41.22:1

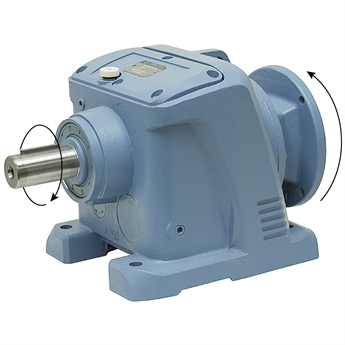

• Input Rotation Reversible, see shaft relation in above photo
• Output RPM @ 1800 RPM Input 42 RPM
• Input Hp 2 Hp Max
• Output Torque 2725 in.-lbs. Max
• Over-Hung Load 1420 lbs. Max
• Service Class II
• Motor Mount 145TC
• Output Shaft 1.375" dia. x 2.76" long keyed, 5/16" wide keyway, shaft end tapped 1/2"-13
• Base Mount Four 0.55" holes on 7.68" x 5.91" centers
• Shpg. 73 lbs.
