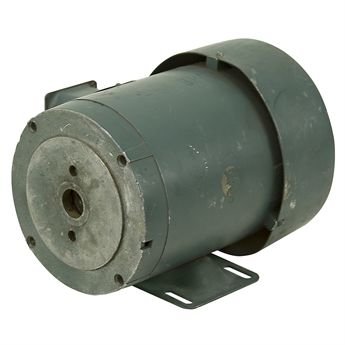

1 HP 3450 RPM 230/460 Volt AC 3Ph Tang Drive Motor Reliance P56G3847M-UA

1 HP 3450 RPM MOTOR
New, RELIANCE model# P56G3847M-UA three-phase motor. External wiring box for easy connections. Two 3/8" dia. stepped holes in pilot on 2-5/16" centers.

SPECIFICATIONS

• Power 1 HP
• Voltage 230/460 VAC, 60 Hz
• Amperage 4.0/2.0 Amps
• Speed 3450 RPM
• Rotation Reversible
• Phase 3
• Enclosure TEFC
• Duty Continuous
• Frame M56
• Base Mount Four 1-1/4" x 5/16" slots on 4-7/8" x 3" centers
• Face Mount Four 5/16" mounting holes on 5-7/8" B.C., 4-1/2" pilot
• Shaft 1/4" wide tang drive
• Size 9-3/4" x 10" x 7-1/4"
• Shpg. 26 lbs.
