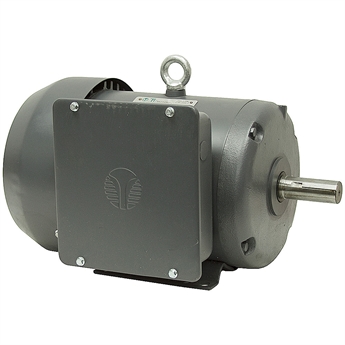

3 HP 1740 RPM 230/460 Volt AC 3Ph Motor

3 HP 1740 RPM 230/460 VAC 182T MOTOR

New, TechTop model BL1-RS-TF-182T-4-B-D-3-CC motor. Steel construction. Ball bearings. Capacitor start and run. No thermal overload protection.

SPECIFICATIONS

• Power 3 HP
• Voltage 230/460 VAC
• Amperage 12.9/6.45 amps
• Speed 1740 RPM
• Rotation Reversible
• Phase 3
• Service Factor 1.15
• Bearings Ball
• Enclosure TEFC
• Duty Continuous
• Frame 182T
• Mount Base 8 slots on 1" to 4-1/2" to 5-1/2" x 7-1/2" centers
• Shaft 1-1/8" dia. x 3" long w/ 1/4" keyway
• Size 13-7/8" x 11-5/8" x 9-1/8"
• Shpg. 94 lbs.
