3 HP 1800 RPM 208-230/460 Volt AC 3Ph Prem Eff Motor

3 HP 1800 RPM 208-230/460 VAC 182T PREMIUM EFFICIENCY MOTOR

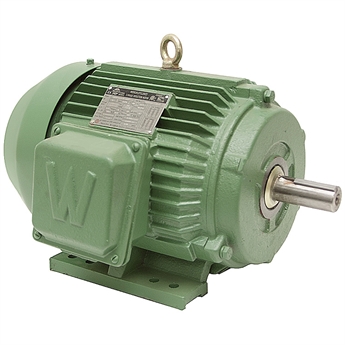

Brand new, WORLDWIDE ELECTRIC model PEWWE3-18-182T premium efficiency three phase motor. Efficiency, 89.5% at full load. Cast iron housing. Double shielded ball bearings. Six bolt base mount on 7-1/2" wide x 4-1/2" and 5-1/2" centers. No thermal overload protection.

SPECIFICATIONS

• Power 3 HP
• Voltage 208-230/460 AC
• Amperage 8.01/4.01 Amps
• Speed 1765 RPM
• Rotation Reversible
• Phase 3
• Service Factor 1.15
• Bearings Ball
• Enclosure TEFC
• Duty Continuous
• Frame 182T
• Mount Base
• Shaft 1-1/8" diam. x 2-3/4" w/ 1/4" keyway
• Size 13-1/8" x 12" x 8-15/16"
• Shpg. 137 lbs.
