300 HP 1788 RPM 460 Volt AC 3Ph 447449T Leeson Motor 171529.60

300 HP 1800 RPM 460 VAC 3PH 449T LEESON MOTOR

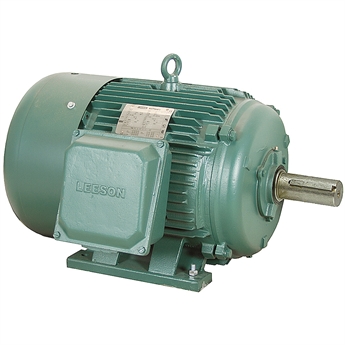

Brand new, LEESON model 171529.60 premium efficiency three phase, electric motor. Inverter-rated, speed range 2:1. Cast iron frame. No thermal overload protection.

SPECIFICATIONS

• Catalog Number 171529.60
• Power 300 HP
• Voltage 460 AC
• Amperage 325.0 Amps
• Speed 1788 RPM
• Rotation Reversible
• Phase 3
• Service Factor 1.15
• Bearings Ball
• Enclosure TEFC
• Duty Continuous
• Frame 447/449T
• Mount Rigid Base Mount
    Six 0.83" diameter holes on   18" x 20" to 25" centers
• Shaft 3-3/8" dia. x 8-1/2" w/ 7/8" key
• Size 53.07" x 35.94" x 27.48"
• Shpg. 2653 lbs.
