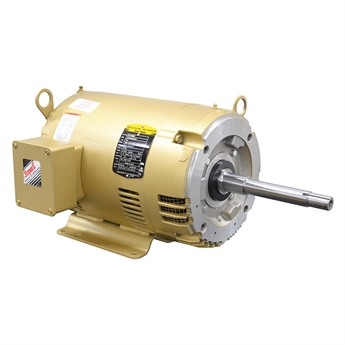

7.5 HP 1770 RPM 208-230/460 VAC 3PH BALDOR MOTOR

7-1/2 HP 1770 RPM 208-230/460 VOLT 3PH BALDOR MOTOR
New, Baldor model# M15899BD.

SPECIFICATIONS

• Power 7-1/2 HP
• Voltage 208-230/460 AC
• Phase 3
• Frequency 60 Hz
• Amperage 20.4-19.4/9.7 Amps
• Speed 1770 RPM
• Rotation Reversible
• Service Factor 1.15
• Bearings Ball
• Enclosure Open
• Duty Continuous
• Frame 213TCZ
• Base Mount Four 0.43" diam. holes on 8-1/2" x 5-1/2" centers
• Face Mount Four 1/2"-13 tapped holes on 7-1/4" diameter bolt pattern
• Shaft 1" dia. x 4-5/8" stepped down to 7/8" dia. x 1-3/8 w/ 3/16" keyway and tapped for 3/8"-16 x 1-1/4"
• Size 21-3/8" x 12-3/4" x 10"
• Shpg. 120 lbs.
