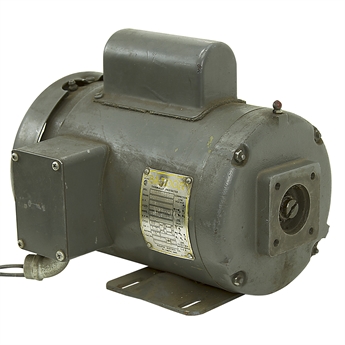

1.5 HP 3450 RPM 115/230 Volt AC Baldor Tang Drive Motor 35E84-525

1.5 HP 3450 RPM MOTOR
New, BALDOR model# 35E84-525 capacitor-start, induction-run motor with 4mm (0.157") wide tang drive. Motor has four 5/16"-18 x 1-1/4" deep tapped holes on 2" square centers in 2-7/8" square pilot. Thermal overload protection with automatic reset. Rigid welded base.

SPECIFICATIONS

• Power 1-1/2 HP
• Voltage 115/230 VAC, 60 Hz
• Amperage 15/7.5 Amps
• Speed 3450 RPM
• Rotation Reversible
• Phase 1
• Service Factor 1.0
• Enclosure TEFC
• Duty Continuous
• Frame 56YZ
• Base Mount Four 1-1/4" x 5/16" slots on 4-7/8" x 3" centers
• Shaft 4mm (0.157") wide tang drive
• Size 11-1/4" x 9-1/4" x 9-1/4"
• Shpg. 48 lbs.
