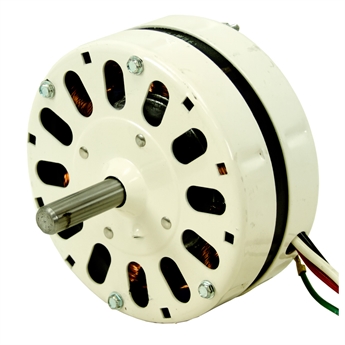

1/30 HP 1050 RPM MOTOR
New, McMILLAN ELECTRIC CO model# A0510B2106 two-speed, shaded pole motor. Intended for use in wall furnaces. Thermal overload protection with automatic reset.
SPECIFICATIONS
- Power 1/30 HP
- Voltage 115 VAC, 60 Hz
- Amperage 1.4 Amps FLA
- Speed 1050 RPM/2SPD
- Rotation Counterclockwise (Shaft-End)
- Phase 1
- Service Factor 1.0
- Bearings Sleeve
- Enclosure Open
- Duty Continuous
- Frame 42
- Face Mount Two 3/16" dia. holes thru housing on 4-5/8" B.C.
- Shaft 1/2" dia. x 11/16" long w/ flat
- Size 4" x 5-1/8" dia.
- Shpg. 6 lbs.
