Description

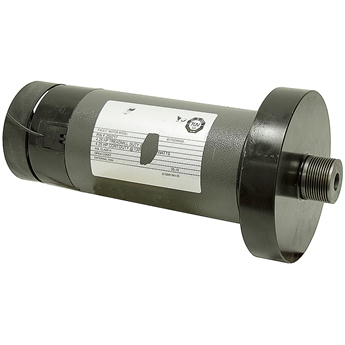

4.25 HP TREADMILL MOTOR
New, Icon Health and Fitness model# F-255717 permanent magnet motor with brushes. Built for use in treadmills, ideal for use with speed controller. Would also make an excellent DC generator. Rated for 4.25 HP treadmill duty or 4.25 HP (3170 W) continuous duty. Internal, normally closed bimetallic switch signals thermal overload. Two 7mm holes in motor housing for self-tapping screws.

Motor housing diameter measures 115mm (4.527"). Removable, heavy (7.2 lb.) steel flywheel mounted onto motor shaft by means of keyway and retention screw. Flywheel measures 172mm (6.772") dia. x 36mm thick. Flywheel has 1-3/4" O.D. ten-groove pulley for serpentine belt.


SPECIFICATIONS
  • Power 4.25 HP (3170 W)
  • Voltage 130 VDC
  • Amperage 24.4 Amps
  • RPM 5110 RPM @ 130 VDC, No Load
  • Rotation Reversible
  • Enclosure OFC
  • Duty Treadmill
  • Mount Two 7mm Holes in Housing on 3" Centers
  • Shaft 17mm dia. x 41mm overall length, Stepped down to 14mm dia. with 5mm keyway, End tapped 10-32
  • Size 12-3/8" x 6-3/4" O.D.
  • Shpg. 33 lbs.
