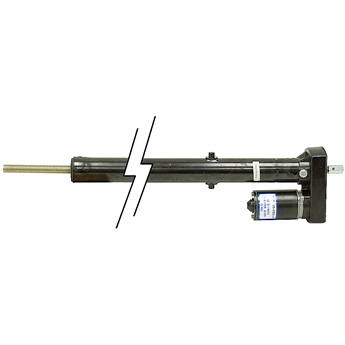

24" Stroke 12 Volt DC 750 lb Linear Actuator

12 VDC 750 LB. LINEAR ACTUATOR
New, model V18-019513-24 heavy duty linear actuator. Ball screw drive. Metal housing is water resistant and sealed against dust. Permanent magnet motor. No limit switches or potentiometer. Trunnion mount, hex shaft extends from back of gearbox to allow manual movement if power fails. 5.5" of threaded shaft exposed when retracted.

SPECIFICATIONS

• Stroke 24"
• Voltage 12 DC
• Load Rating 750 lbs. max
• Extension Speed 1"/sec
• Amps
    No Load 5
    Full Load 20
• Duty 10%
• Trunnion Pins
  1/2" dia. x 3" total width
• Retracted Length
  25.85" trunnion pin to end of body
• Shaft 3/4-10 UNC w/flat
• Housing Size 34.6" x 6.5" x 3.5"
• Overall length 40" retracted
• Shpg. 25 lbs.
