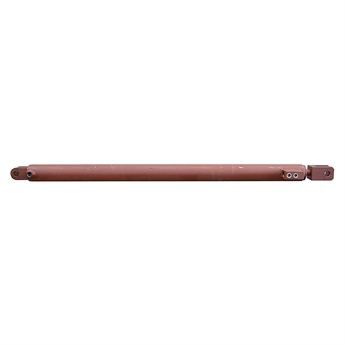

2.466"(65MM) x 42.75"(1085MM) x 1.104"(28MM) DOUBLE ACTING HYDRAULIC CYLINDER Unused old inventory. Atlas Copco D965051392, welded, double acting, hydraulic cylinder. Cylinder has a SUN CBCA 1DUO LHN adjustable cartridge valve.
SPECIFICATIONS |
- Double Acting
- Bore x Stroke 2.466"(65MM) x 42.75"(1085MM)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 1.104"(28MM)
|
- Extend Port M18 x 1.5
- Retract Port M14 x 1.5
- Retracted Length 53.5"
- Gland Face to Rod Pin Center 3.75"
- Shpg. 56 lbs.
|
END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 2.362"
- Inside Width 1.069"
- Throat Depth 2.99"
- Pin Hole 1"
|
- Base End Clevis
- Outside Width 2.19"
- Inside Width 1.065"
- Throat Depth 2.933"
- Pin Hole 1"
|
