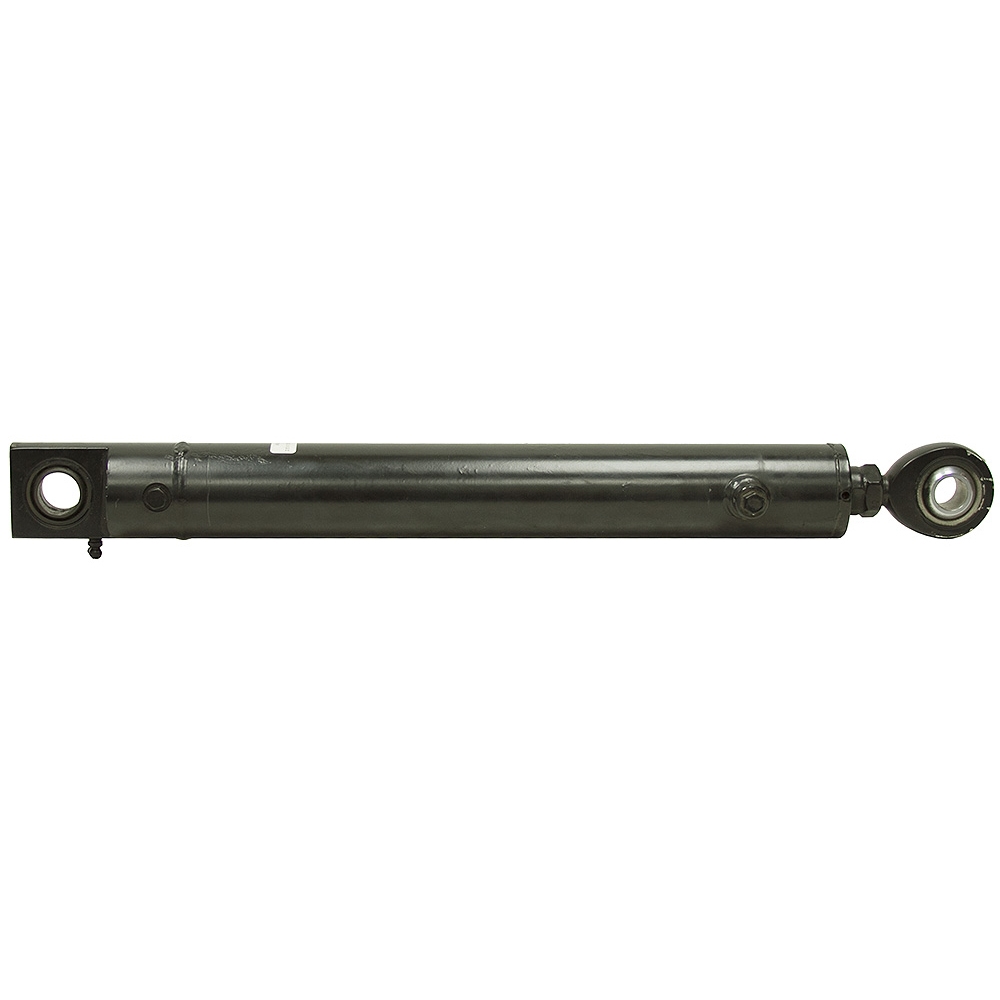

2.5x15.2x1.5 Prince DA Hydraulic Cylinder BE-0145

2.5" x 15.2" x 1.5" DA HYDRAULIC CYLINDER
New, Prince Mfg model# BE-0145 welded cylinder with wire-lock gland retainer. Internal cushion valve in piston operates to decelerate stroke at end of extension. Magnet installed on end of rod behind lock-nut. SAE 8 port for extension or for magnetic position sensor (not included).

SPECIFICATIONS
Double Acting Bore x Stroke 2-1/2" x 15.2" Barrel Thickness 3/16" Pressure 3000 PSI max. Rod Dia. 1-1/2"	Extend Ports SAE 4/8 Retract Port SAE 4 Retracted Length 26-3/4" Shpg. 31 lbs.

END MOUNTINGS
Rod End Thread-On Tang w/ Spherical Bushing Max Thickness 1-3/8" Pin Center to Tang End 1-3/8" Pin Hole 1"	Base End Tang w/ Spherical Bushing Max Thickness 1-1/16" Pin Center to Tang End 1-7/16" Pin Hole 1-1/4"
