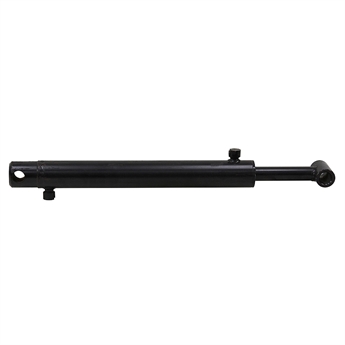

2.5x18.25x1.5 Bush Hog 50048398 DA Hydraulic Cylinder

2-1/2" X 18-1/4" X 1-1/2" DOUBLE ACTING HYDRAULIC CYLINDER
New, BUSH HOG model 50048398 double acting hydraulic cylinder. Originally intended as a lift cylinder on a BUSH HOG 3545 loader. Welded construction, thread in gland cap. Ports are offset 180° and face each other.

SPECIFICATIONS
Double Acting Bore x Stroke 2-1/2" x 18-1/4" Pressure 3000 PSI max. Rod Dia. 1-1/2"	Ports SAE 6 Retracted Length 31-3/4" Shpg. 36 lbs.

END MOUNTINGS
Rod End Crosstube Outside Width 3-1/2" Pin Hole 1-1/4"	Base End Thru-hole O.D. 2-3/4" Pin Hole 1-1/4"
