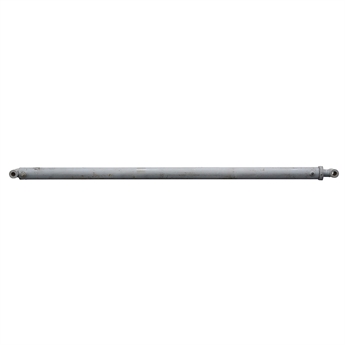

2.5x63x1.75 DA Hydraulic Cylinder Dana 8534/BA/DT

Item Number: 9-5760

Price: $189.99
TOP
Back to top

2.5x63x1.75 DA Hydraulic Cylinder Dana 8534/BA/DT

  • 2.5x63x1.75 DA Hydraulic Cylinder Dana 8534/BA/DT
  • 2.5x63x1.75 DA Hydraulic Cylinder Dana 8534/BA/DT - Alternate 1
  • 2.5x63x1.75 DA Hydraulic Cylinder Dana 8534/BA/DT - Alternate 2

2.5x63x1.75 DA Hydraulic Cylinder Dana 8534/BA/DT

item number: 9-5760 PRICE: $189.99 Out of Stock - No Longer Available
Calculate Shipping for Item 9-5760
2.5x63x1.75 DA Hydraulic Cylinder Dana 8534/BA/DT
Item Number: 9-5760
Price: $189.99
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION
2.5" x 63" x 1.75" DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Dana model# 8534/BA/DT

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2.5" x 63"
  • Barrel Thickness 0.187"
  • Gland Retainer Externally Threaded Gland Cap
  • Pressure 3000 PSI max.
  • Rod Dia. 1.75"
  • Extend Port 1/2" NPT
  • Retract Port 1/4" NPT
  • Retracted Length 74.25"
  • Shpg. 93 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 2"
  • Width 4.25"
  • Pin Hole 1"
  • Rod End Cross-Tube
  • O.D. 2"
  • Width 4.25"
  • Pin Hole 1"
