2.625x15x1.5 DA Hydraulic Cylinder

Item Number: 9-7025

Price: $99.99
TOP
Back to top

2.625x15x1.5 DA Hydraulic Cylinder

2.625x15x1.5 DA Hydraulic Cylinder

item number: 9-7025 PRICE: $99.99 57 In Stock Surplus Item


calculate shipping
Calculate Shipping for Item 9-7025
2.625x15x1.5 DA Hydraulic Cylinder
Item Number: 9-7025
Price: $99.99
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 65 of our current catalog
Description

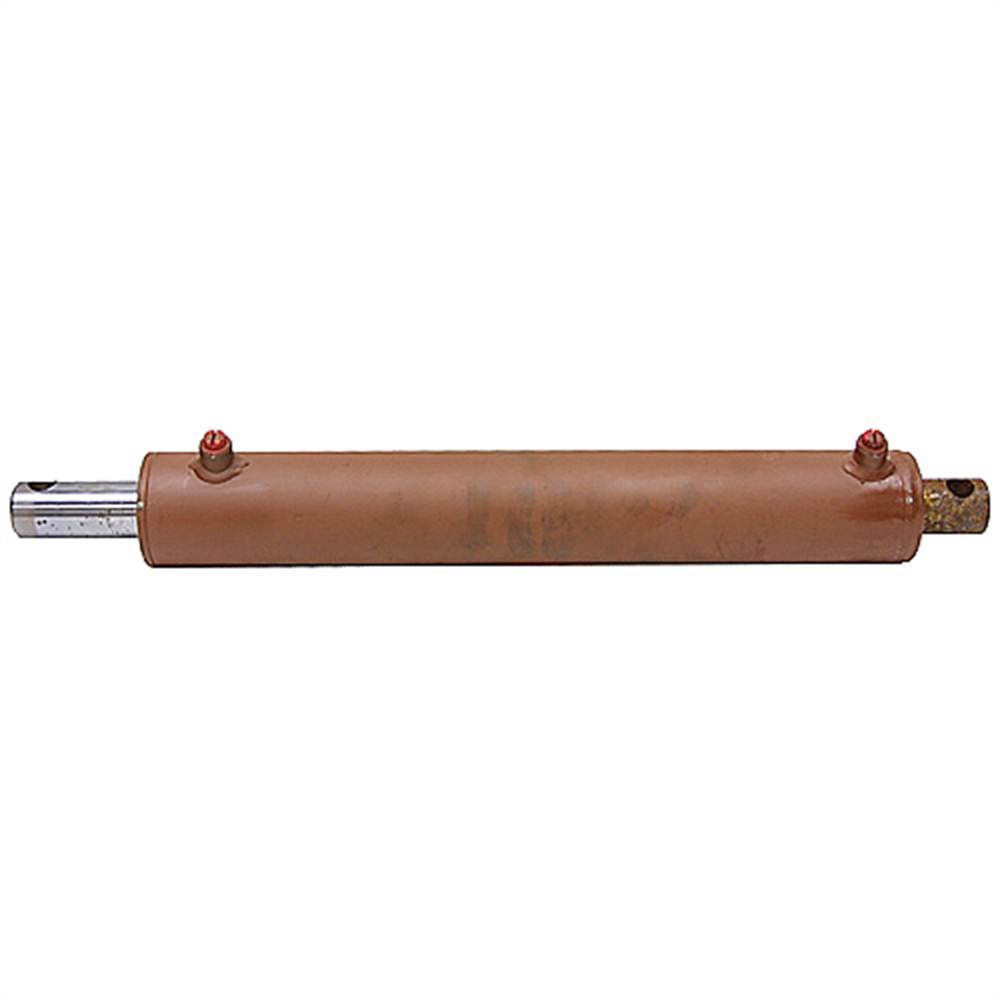

2-5/8" x 15" x 1-1/2" DA HYD CYLINDER
SPECIFICATIONS
  • Double acting
  • Bore/stroke 2-5/8" x 15"
  • 2500 PSI
  • Rod diam. 1-1/2"
  • Ports SAE 6
  • Retracted lgth. 24"
  • Rod pinhole 2-3/4" from body
  • Base pinhole 1-1/4" from body
  • Base extension 1-1/2" diam
  • Pin holes 3/4"
  • Shpg. 30 lbs.
Warranty
90 Day Surplus Center WarrantyView Warranty
Warranty Information

Products we regularly stock that are purchased directly from the manufacturer are covered by that manufacturers warranty.


We warrant all other products, only to the original purchaser, to be free from defects in materials and workmanship for a period of 90 days from date of shipment.


Because we have no assurance of the purposes for which any of the items herein will or may be used, no warranty is given as to the fitness of the item for any particular purpose. You have the responsibility for determining the suitability of items herein for your particular use. We shall not be liable for incidental or consequential damages.


NOTE! Warranties do not cover bent hydraulic cylinder shafts.


We shall, at our option, repair or replace any items deemed by us to be defective under this warranty. Items returned by the purchaser for warranty adjustment must be handled as stated in our return policy. Proof of, and date of purchase will be required.


Remedies under this warranty shall be limited to the original purchase price of the claimed defective item. (Some states do not allow limitations on implied warranties, incidental or consequential damages, thus, some of the limitations or exclusions referred to above may not apply to you.)


In no event shall we be liable for any damages, or warrant any of our products which are made defective as a result of damage in shipment, user's abuse, neglect or improper operation.



Ask A Question
Submit a question for this product

Showing Questions of 2

Hi do you sell a repack kit for this cylinder or can send me information on a source I can get them from?

A: We do not sell a seal kit for this cylinder. We have no information regarding where one could be acquired. It may need to be examined by a hydraulic repair shop to get the correct seals.

Hi, can you give me the over all length, and if you can, what is the distance from pin center to end of base lug, and pin center to rod end. Thanks, Adrian

A: The overall length is 25.5". Base end pin center to outboard side of lug is .75", same for rod end. Additionally, from gland to rod center pin is 2.75", and from base cap to base center pin is 1.25".
